Engine Control System Diagnosis (5 Of 6)
>>
DTC P2128-00: Throttle/Pedal Position Sensor/Switch 'E' Circuit High Input
>>
Troubleshooting
>>

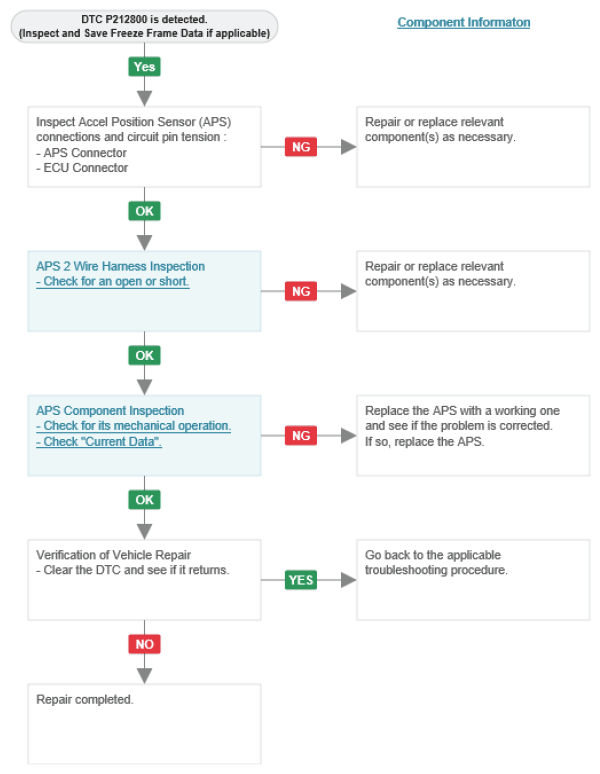

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
