Diagnostic Flowchart

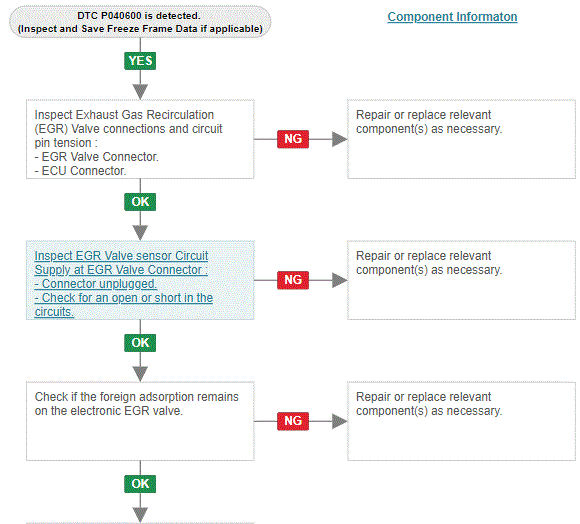

Fig 1: 1 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

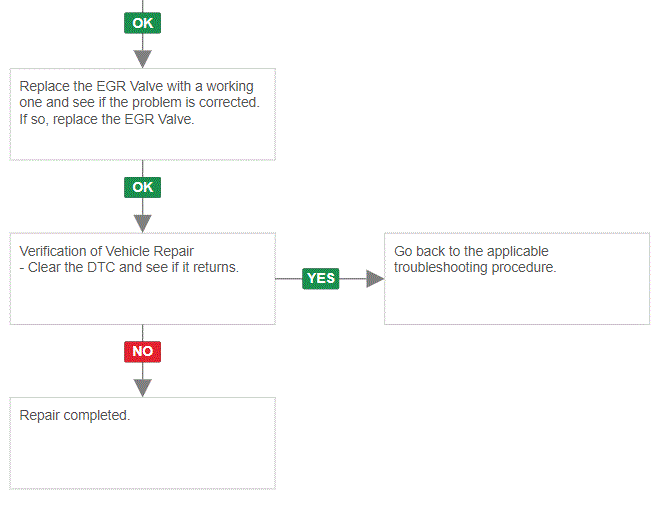

Fig 2: 2 Of 2

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: The learnt value must be reset after replacing the EGR valve. Otherwise, problems regarding performance and exhaust may occur until the automatic learning takes place after component replacement.
