Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

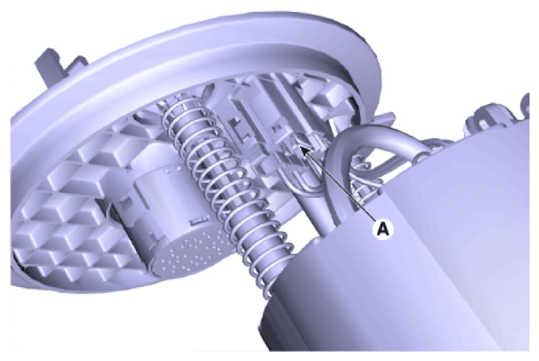

  2. Disconnect the fuel sender connector (A).
    G14694574Courtesy of HYUNDAI MOTOR AMERICA

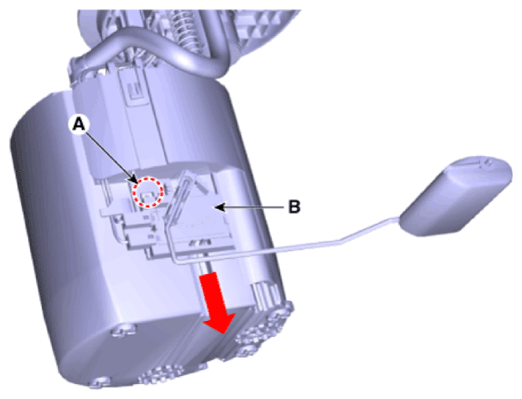

  3. Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
    G14694575Courtesy of HYUNDAI MOTOR AMERICA

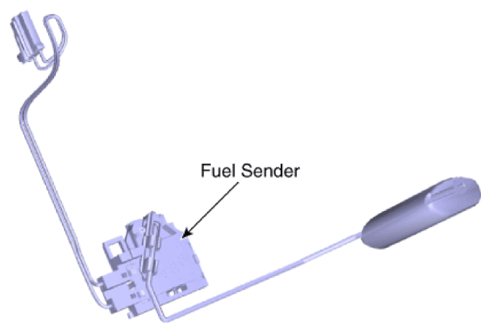

    G14694576Courtesy of HYUNDAI MOTOR AMERICA
