Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

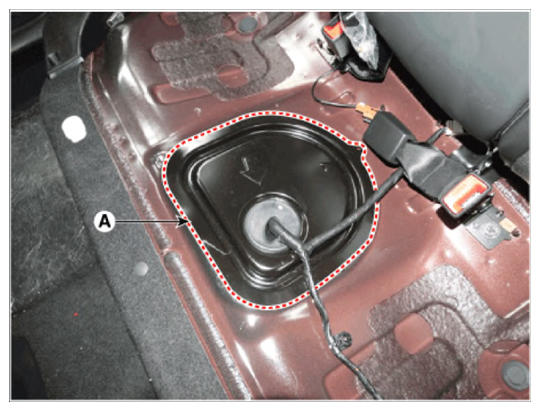

  4. Remove the fuel pump service cover (A).
    G14694548Courtesy of HYUNDAI MOTOR AMERICA

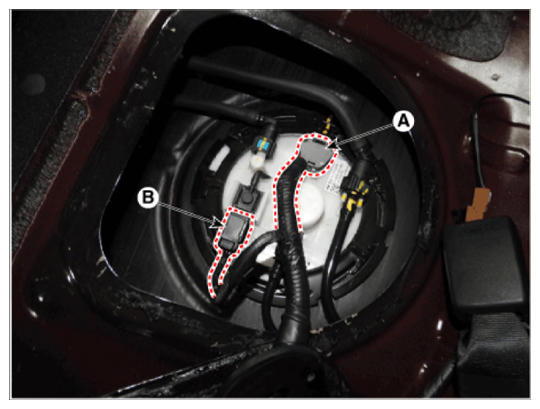

  5. Disconnect the fuel pump connector (A).
  6. Disconnect the fuel tank pressure sensor connector (B).
    G14694549Courtesy of HYUNDAI MOTOR AMERICA

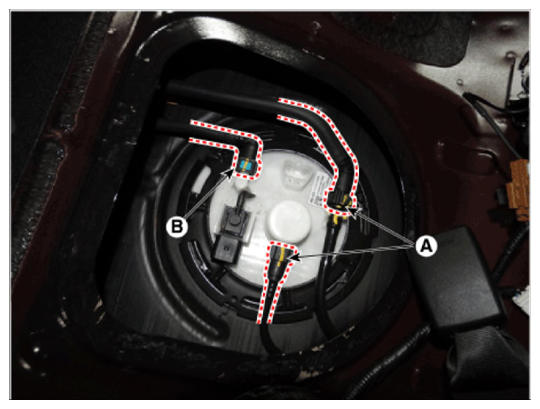

  7. Disconnect the vapor tube quick connector (A).
  8. Disconnect the fuel feed tube quick connector (B).
    G14694550Courtesy of HYUNDAI MOTOR AMERICA

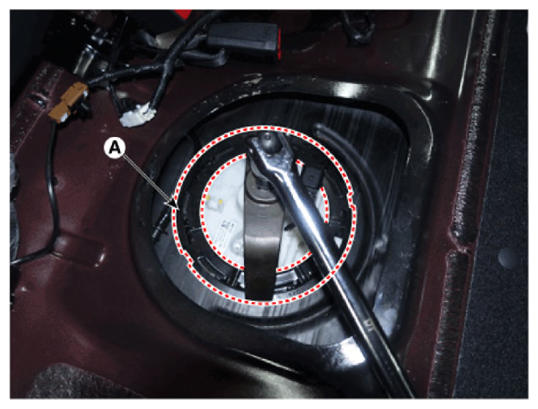

  9. Remove the locking ring (A) by using the SST [SST No: 09310-B8100] from the fuel tank.
    NOTE:
    • When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
    • When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
    G14694551Courtesy of HYUNDAI MOTOR AMERICA

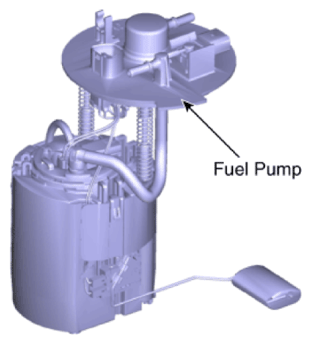

    G14694552Courtesy of HYUNDAI MOTOR AMERICA
