Repair Procedures: Removal
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

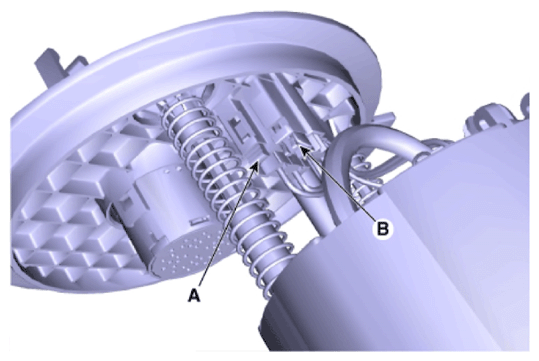

- Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

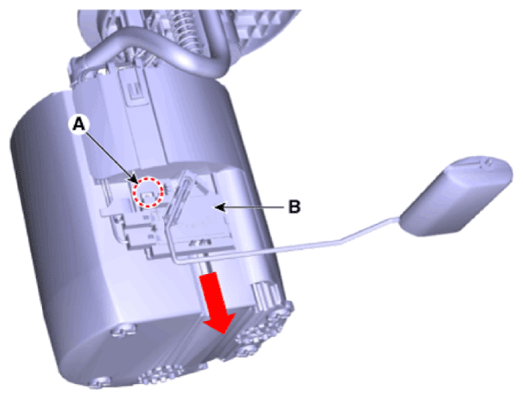

- Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.

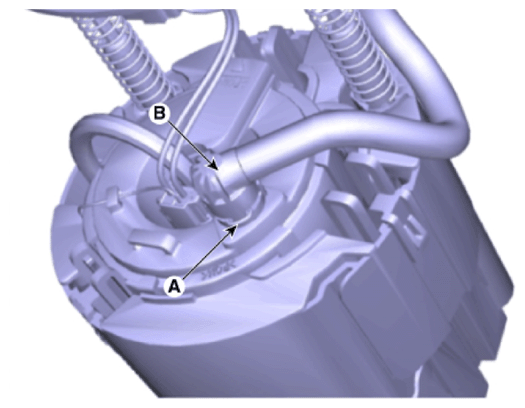

- Remove the fuel feed tube (B) after removing the fix clip (A).

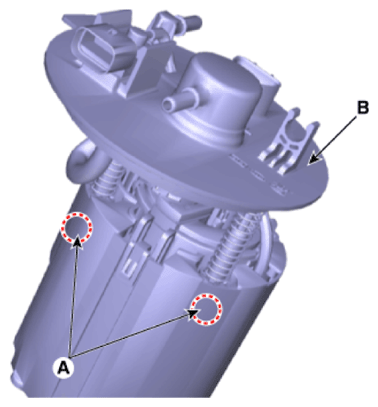

- Remove the head assembly (B) after removing the fix hooks (A).

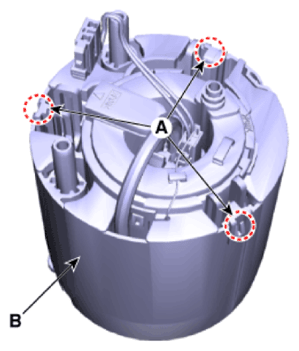

- Remove the reservior-cup (B) after releasing the fixing hooks (A).

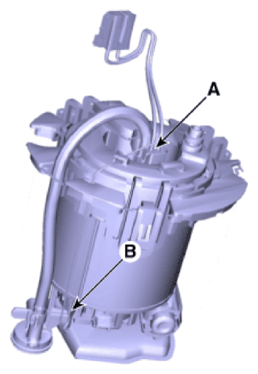

- Disconnect the fuel pump motor connector (A).
- Disconnect the ground cable (B).

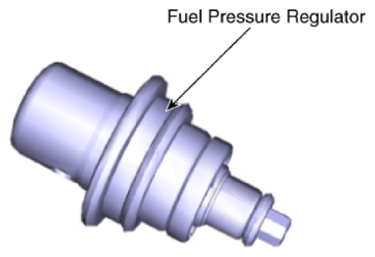

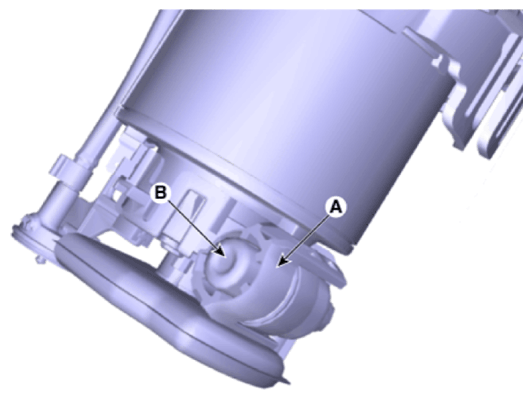

- Remove the fuel pressure regulator (B) after releasing the fixing clip (A).
