Repair Procedures: Replacement

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  2. Remove the drive belt.

    (Refer to Timing System - "DRIVE BELT ")

  3. Remove the crankshaft damper pulley.

    (Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")

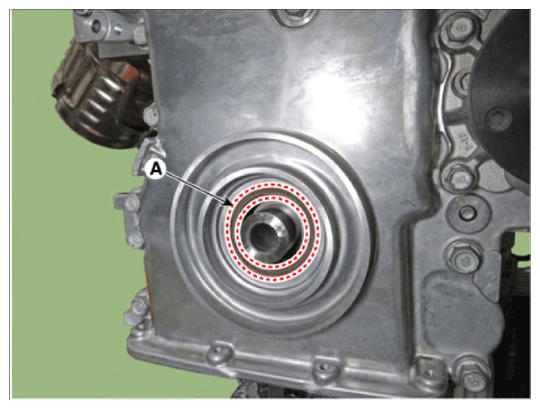

  4. Remove the front oil seal (A).
    G14693815Courtesy of HYUNDAI MOTOR AMERICA

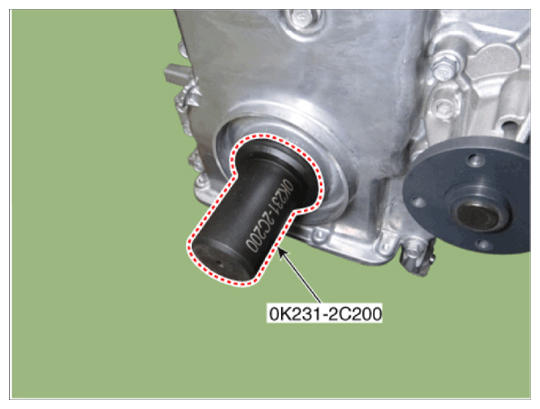

  5. Using the SST (0K231-2C200), install a new front oil seal.
    G14693816Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Always use a new front oil seal.
  6. Install in the reverse order of removal.
