Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

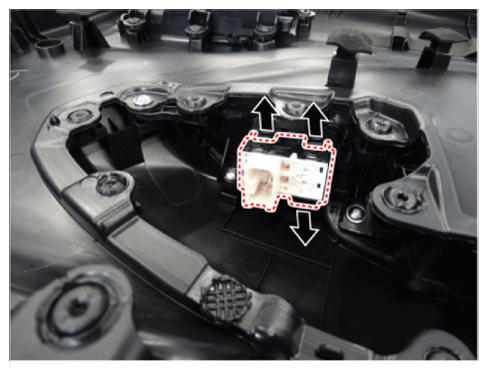

  3. Remove the power window switch assembly by pulling out both ends of the switch holders.
G14696277Courtesy of HYUNDAI MOTOR AMERICA
