Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

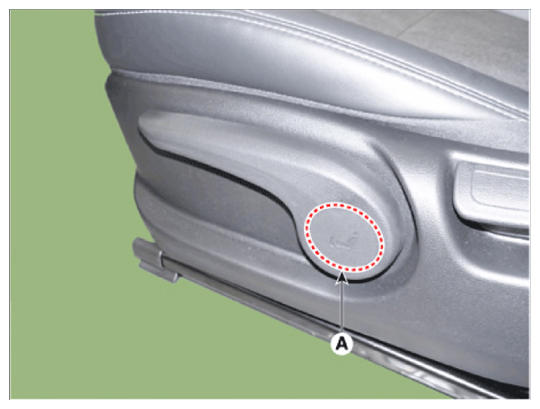

  2. Using a remover and remove the front seat height nob cap (A).
    G14695855Courtesy of HYUNDAI MOTOR AMERICA

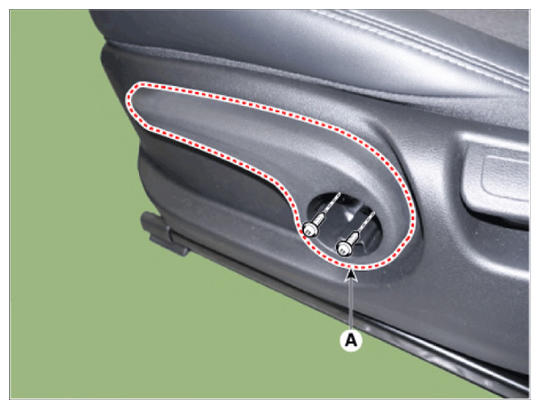

  3. Loosen the mounting screws and remove the front seat height nob (A).
    G14695856Courtesy of HYUNDAI MOTOR AMERICA

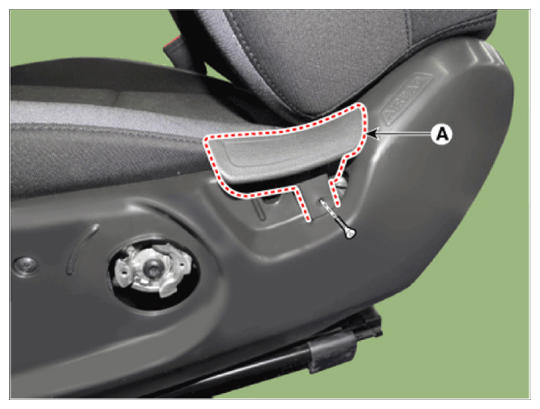

  4. Loosen the mounting screw and remove the front seat recliner lever (A).
    G14695857Courtesy of HYUNDAI MOTOR AMERICA

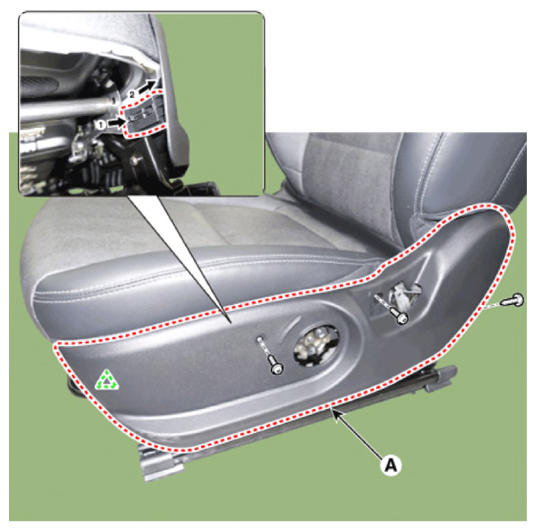

  5. Remove the front seat outer shield cover (A) by pulling forward in the direction of the arrow using screw driver or remover.
    G14695858Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
