Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

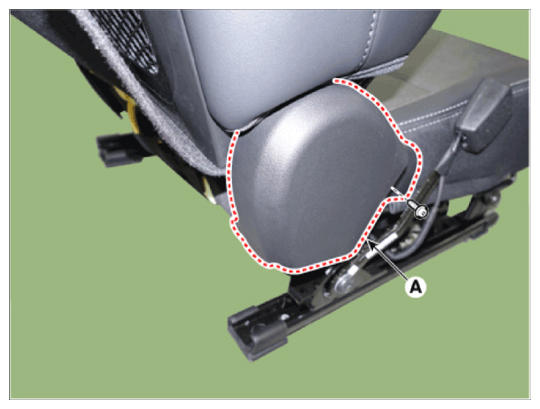

Loosen the mounting screws and remove the front seat shield inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
