Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

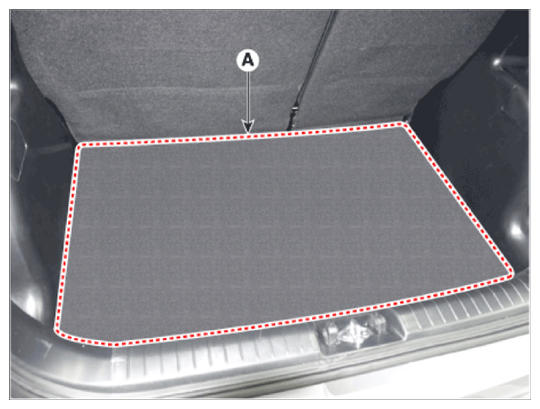

Remove the luggage covering board (A).

Courtesy of HYUNDAI MOTOR AMERICA

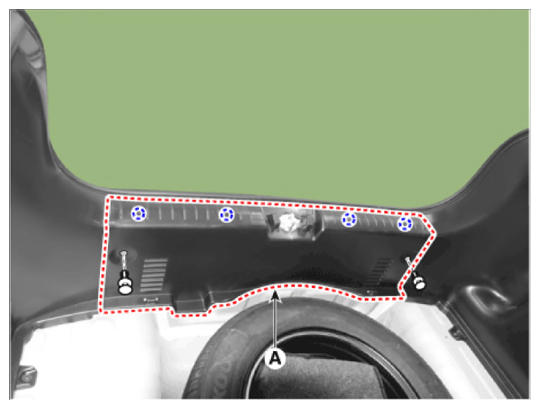

Loosen the mounting clips and remove the rear transverse trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
