Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

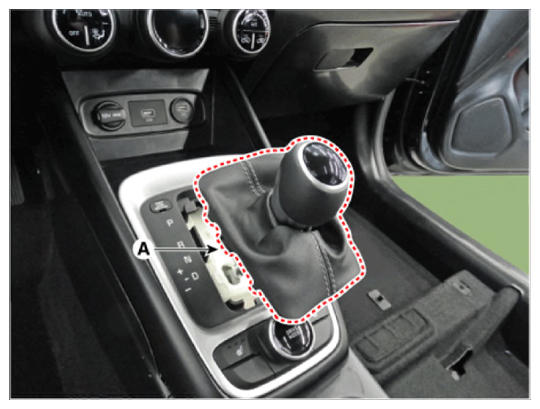

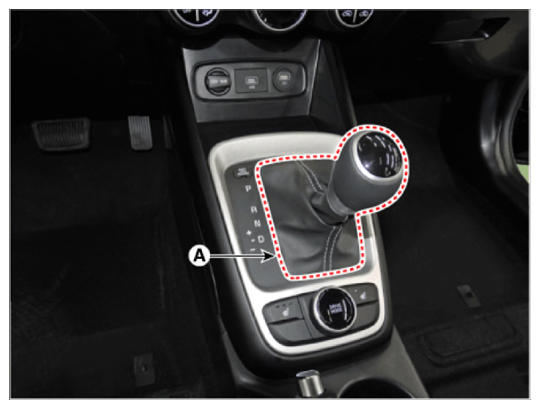

Remove the gear knob & gear boots (A) pull both of it up.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

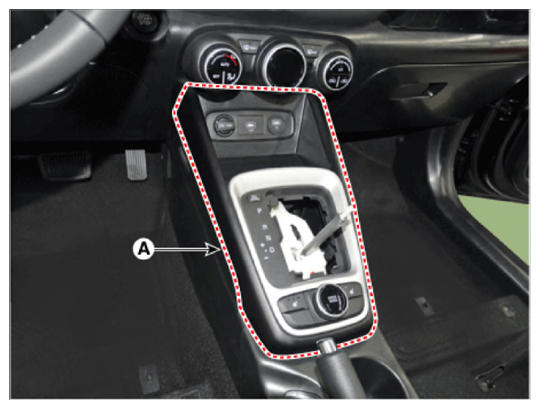

Using a remover and remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

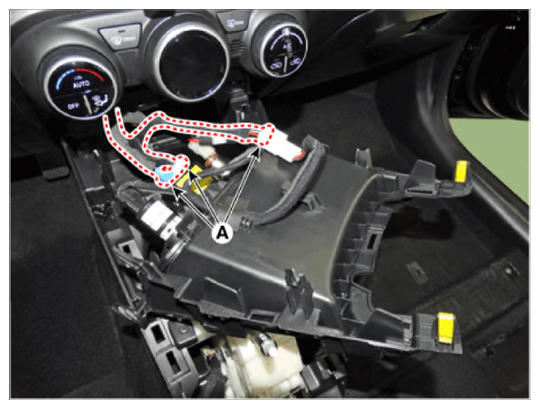

Press the lock pin and separate the various connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

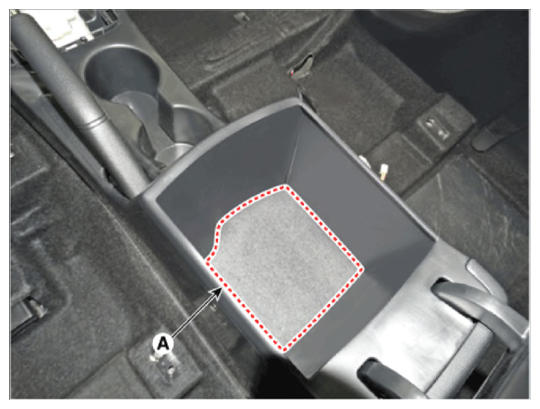

Remove the storage box pad (A).

Courtesy of HYUNDAI MOTOR AMERICA

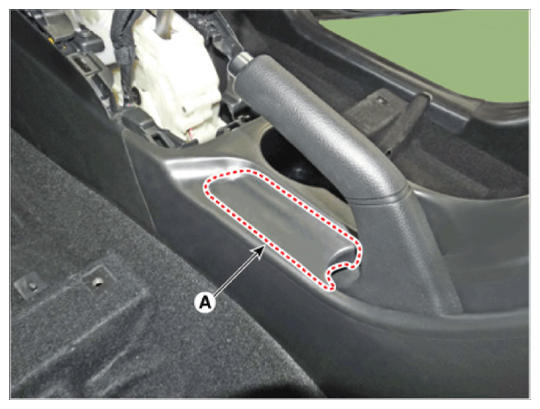

Remove the parking brake cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

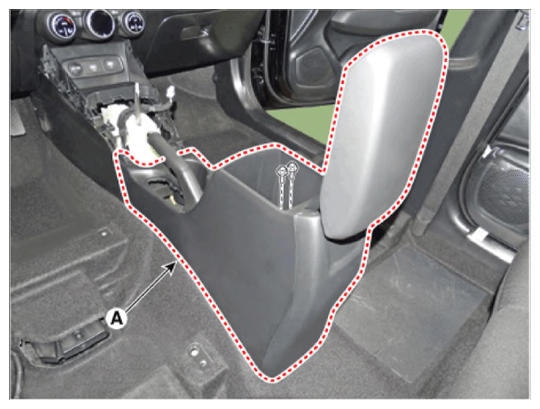

Loosen the mounting bolts and remove the rear console assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

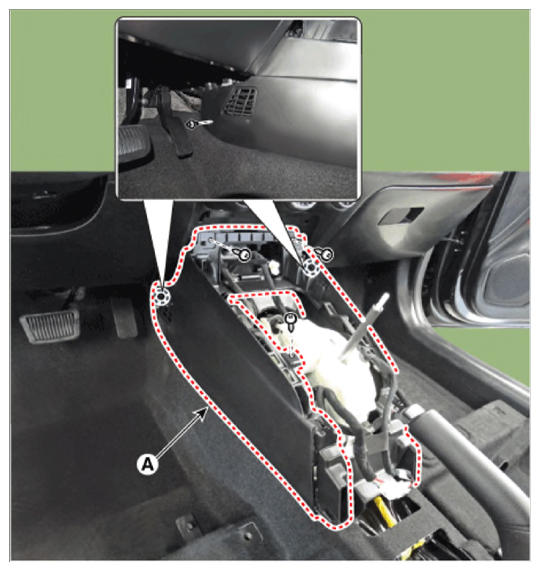

Loosen the mounting screws, clips and remove the front console assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
