Repair Procedures: Inspection

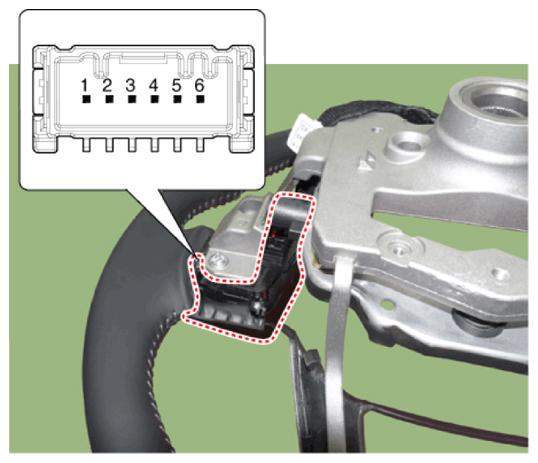

- Check for resistance between terminals in each switch position (LH).RESISTANCE SPECIFICATION (LH: AUDIO + HANDS FREE)

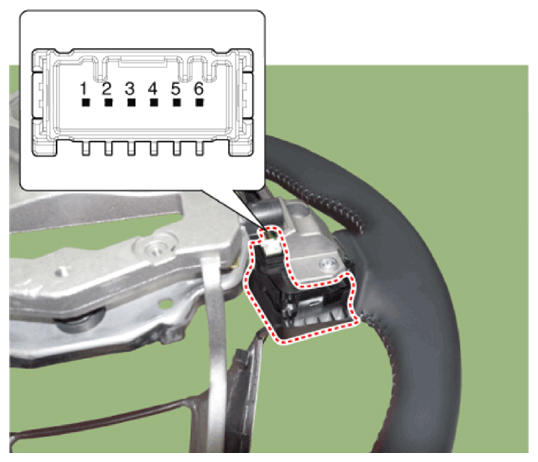

Switch Connector terminal Resistance (±5%) SEEK Up 1 - 6 430Ω SEEK Down 1.11 KΩ MODE 2.11 KΩ MUTE 3.11 KΩ Volume (+) 4.61 KΩ Volume (-) 6.81 KΩ Voice 10.71 KΩ END 18.91 KΩ SEND 40.91 KΩ - Check for resistance between terminals in each switch position (RH).
RESISTANCE SPECIFICATION (RH: TRIP + CRUISE)
| Switch | Connector terminal | Resistance (±5%) |
|---|---|---|
| Cancel | 2 - 6 | 390 Ω |
| SET - | 2 - 6 | 610 Ω |
| RES + | 2 - 6 | 910 Ω |
| Cruise ON/OFF | 2 - 6 | 1.38 KΩ |
| Cruise Mode & SLD ON/OFF | 2 - 6 | 2.13 KΩ |
| Group | 2 - 6 | 390 Ω |
| Trip Up | 2 - 6 | 610 Ω |
| Trip Down | 2 - 6 | 910 KΩ |
| Trip OK | 2 - 6 | 1.38 KΩ |
