Repair Procedures: Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering wheel assembly.

   (Refer to Steering System - "STEERING WHEEL ")

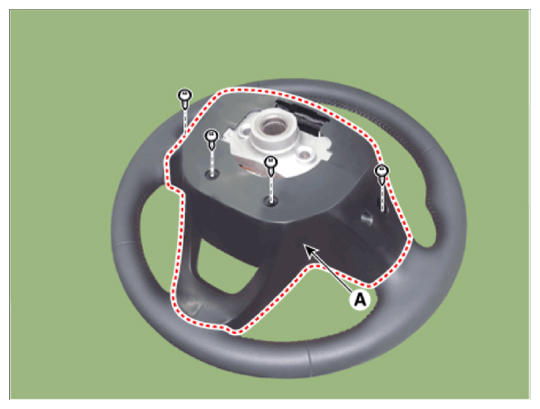

3. Remove the steering lower cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

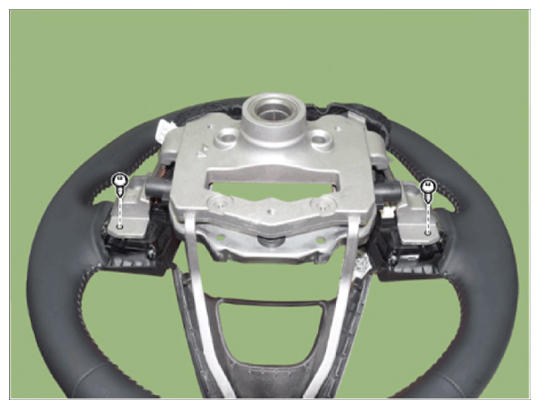

4. Loosen the steering remote control switch mounting screw.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Disconnect the connector (A) and then remove the steering wheel remote control switch (B).

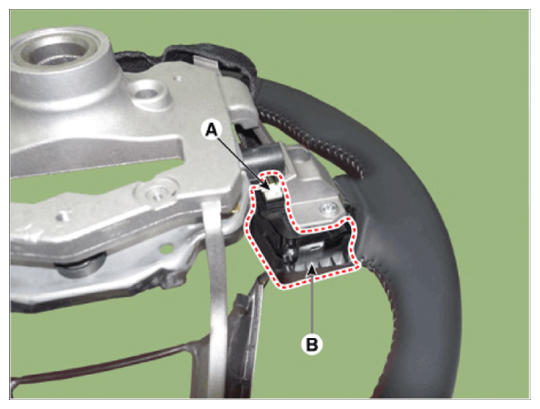

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

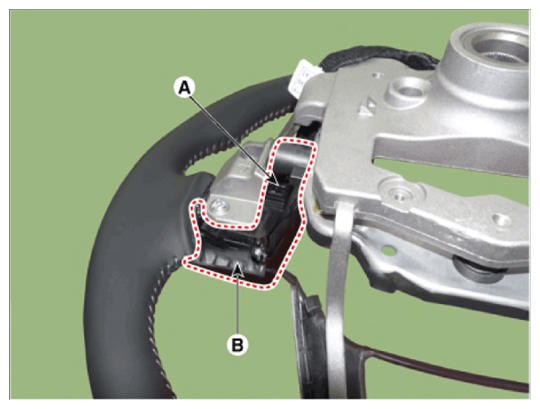

[LH]

Courtesy of HYUNDAI MOTOR AMERICA
