Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel.

    (Refer to Body - "CENTER FASCIA PANEL ")

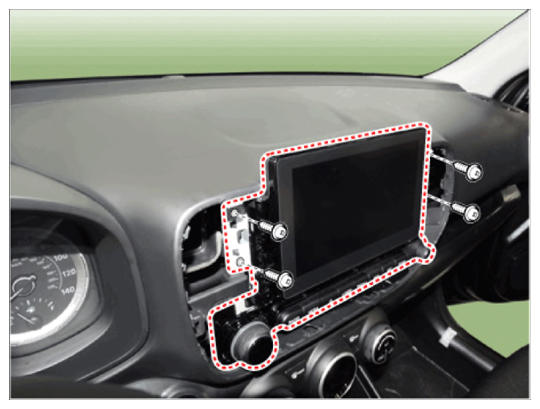

  3. Separate the AVN head unit from crash pad after loosening the screws (4EA).
    G14695994Courtesy of HYUNDAI MOTOR AMERICA

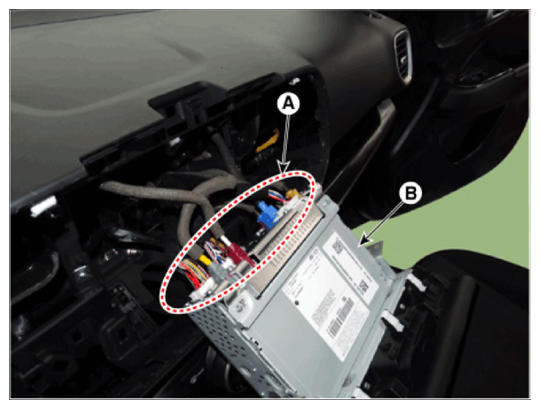

  4. Remove the AVN head unit (B) after disconnecting the connectors and cable (A).
G14695995Courtesy of HYUNDAI MOTOR AMERICA
