Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

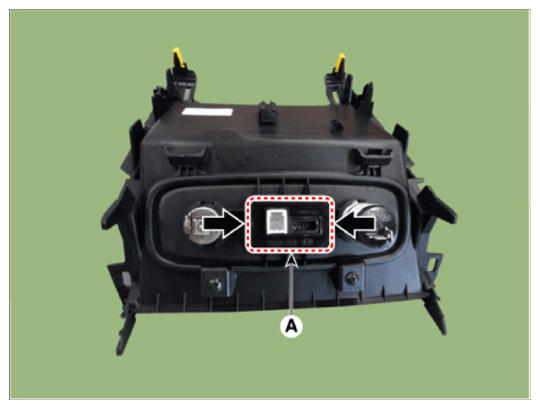

  3. Remove the USB (A) after disengaging the hooks.
G14695988Courtesy of HYUNDAI MOTOR AMERICA
