Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.

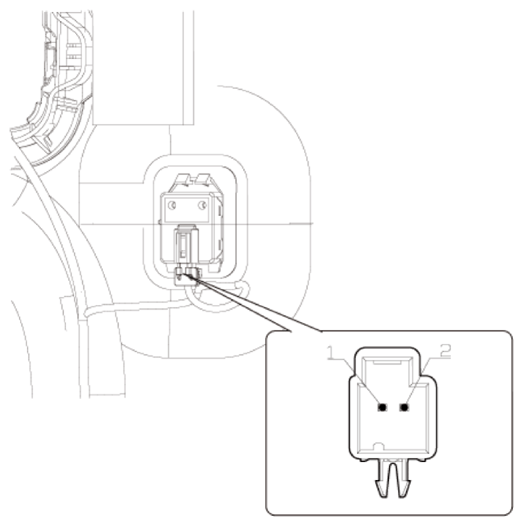

  2. Remove the MIC after disconnect the connector.
    G14695989Courtesy of HYUNDAI MOTOR AMERICA

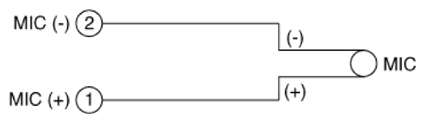

  3. Check the continuity of between terminals.
G14695990Courtesy of HYUNDAI MOTOR AMERICA
