Trunk Lock Module Inspection
- Remove the tailgate trim.
(Refer to Body - "TAIL GATE TRIM ")

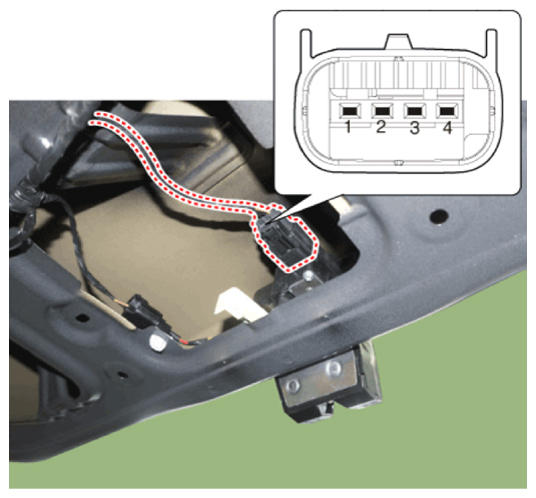

- Disconnect the connector from the actuator.

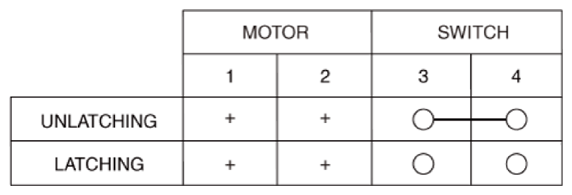

- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
