Repair Procedures: Removal

LHD

1. Remove the air cleaner assembly and air duct.

   (Refer to Engine Mechanical System - "AIR CLEANER (1.6L) or AIR CLEANER (2.0L)")

2. Remove the battery and battery tray.

   (Refer to Engine Electrical System - "BATTERY (1.6L) or BATTERY (2.0L)")

3. Remove the engine control module (ECM).

   (Refer to Engine Control System - "ECM (1.6L) or ENGINE CONTROL MODULE (ECM) (2.0L")

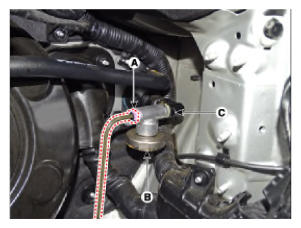

4. Separate the clutch tube (A).
5. Remove the clutch regulator (B) from the master cylinder after removing the snap pin (C).

   Tightening torque  :

   12.6 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 Ib-ft)

   CAUTION:

   • After removing the clutch tube, block the tube end to prevent the brake fluid from leaking.
   • Do not spill brake fluid on the vehicle it may damage the paint if brake fluid does contact the paint, wash it off immediately with water.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

RHD

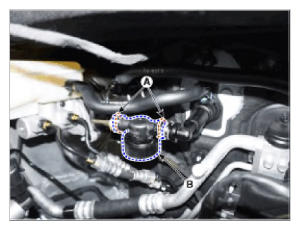

1. Remove the snap pin (A-2ea).
2. Separate the clutch regulator (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA
