Repair Procedures: Removal: USB
- Disconnect the negative (-) battery terminal.
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
- Remove the heater & A/C control unit.
(Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT ")

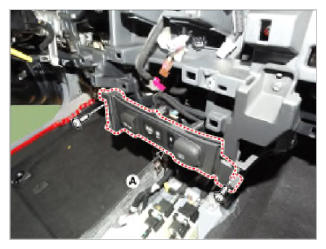

- Separate the center fascia lower panel (A).

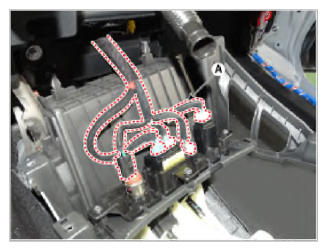

- Disconnect the connector (A) and then remove the center fascia lower panel.

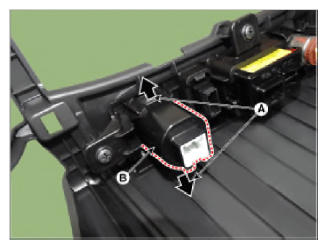

- Remove the multimedia jack (B) after disengaging the retaining clips (A).
