Repair Procedures: Inspection

  1. Disconnected the negative (-) battery terminal.
  2. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

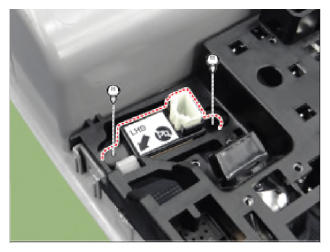

  3. Remove the overhead console cover after loosening the screws.
    G13054224Courtesy of HYUNDAI MOTOR AMERICA

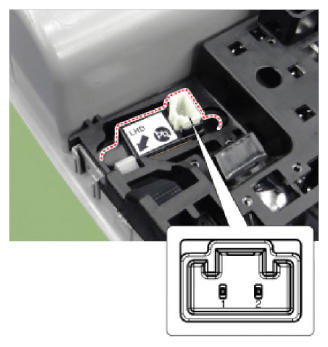

  4. Check the continuity of between terminals.
    G13054225Courtesy of HYUNDAI MOTOR AMERICA
    G13054226Courtesy of HYUNDAI MOTOR AMERICA
