Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cylinder head cover.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")

  2. Set No. 1 cylinder to top dead center (TDC) on compression stroke.

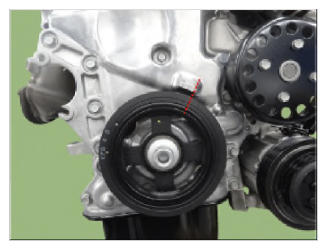

    1. Turn the crankshaft damper pulley and align its groove with the timing mark of the timing chain cover.
      G13055102Courtesy of HYUNDAI MOTOR AMERICA

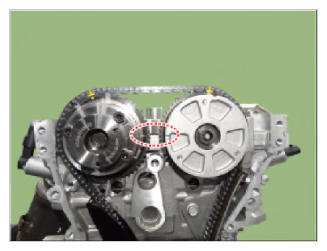

    2. Check that the TDC marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown in the illustration. If not, turn the crankshaft by one revolution (360°) more.
    G13055103Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not turn the crankshaft damper pulley counterclockwise.
  3. Remove the timing chain cover & oil pump assembly.

    (Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")

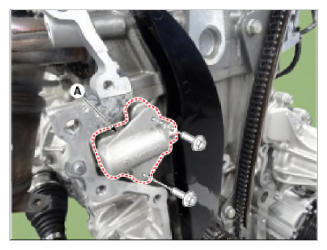

  4. Remove the timing chain tensioner (A).
    G13055104Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the detached tensioner.

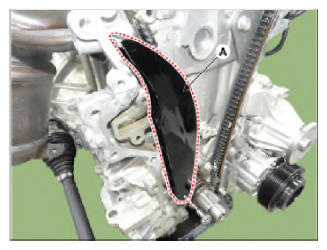

  5. Remove the timing chain tensioner arm (A).
    G13055105Courtesy of HYUNDAI MOTOR AMERICA

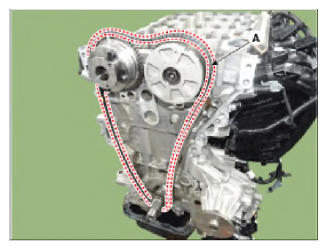

  6. Remove the timing chain (A).
    G13055106Courtesy of HYUNDAI MOTOR AMERICA

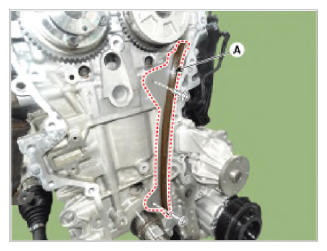

  7. Remove the timing chain guide (A).
G13055107Courtesy of HYUNDAI MOTOR AMERICA
