Repair Procedure: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

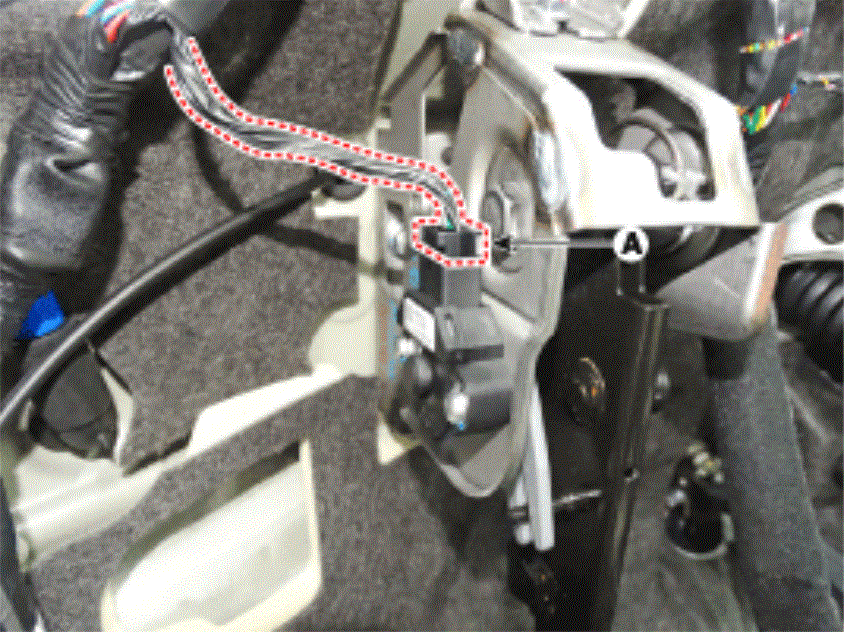

  2. Disconnect the ignition lock & clutch switch connector (A).
    G15472298Courtesy of HYUNDAI MOTOR AMERICA

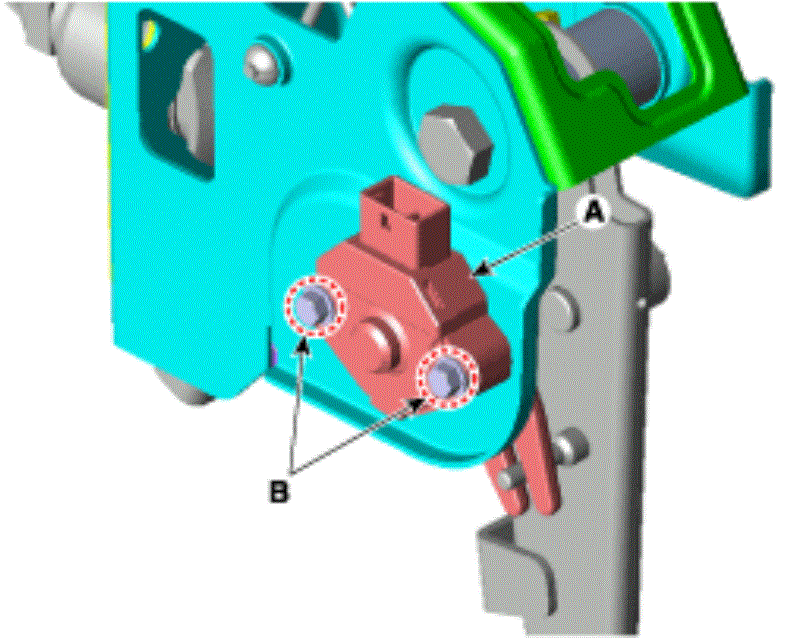

  3. Remove the ignition lock & clutch switch (A) after removing the bolt (B-2ea).
    G15472299Courtesy of HYUNDAI MOTOR AMERICA

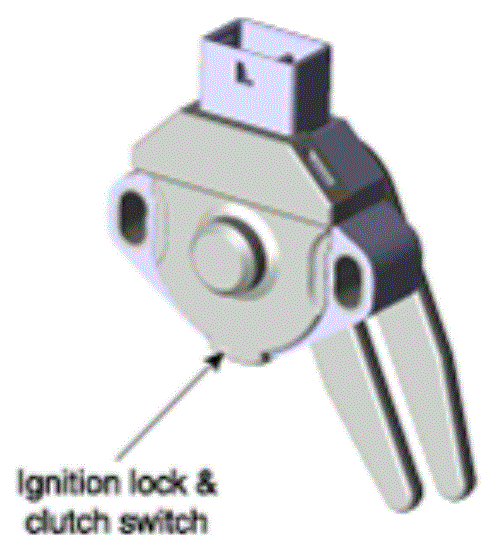

    G15472300Courtesy of HYUNDAI MOTOR AMERICA
