Repair Procedures: Replacement

Information

• If possible, use a 4-post lift (A) to maintain level.

Courtesy of HYUNDAI MOTOR AMERICA

1. Shut off the engine and wait for at least 5 minutes.
2. Remove the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

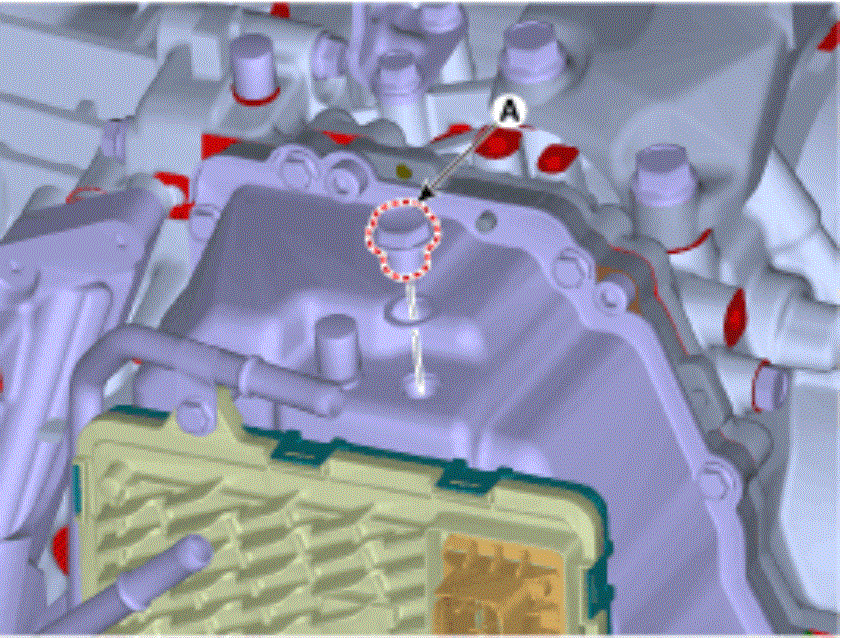

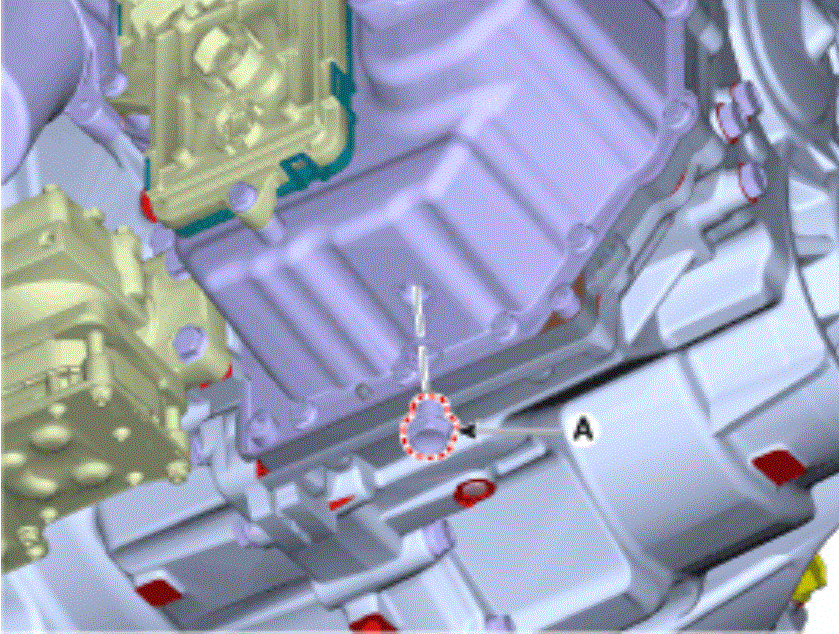

3. Loosen the drain plug (A) and then drain the fluid.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

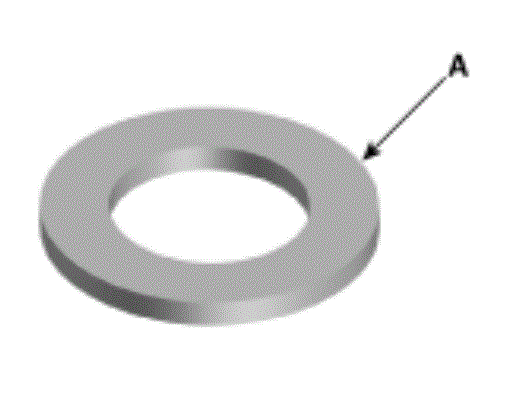

   • The existing gasket (A) must be replaced with a new one. (Do not reuse it.)

   Courtesy of HYUNDAI MOTOR AMERICA

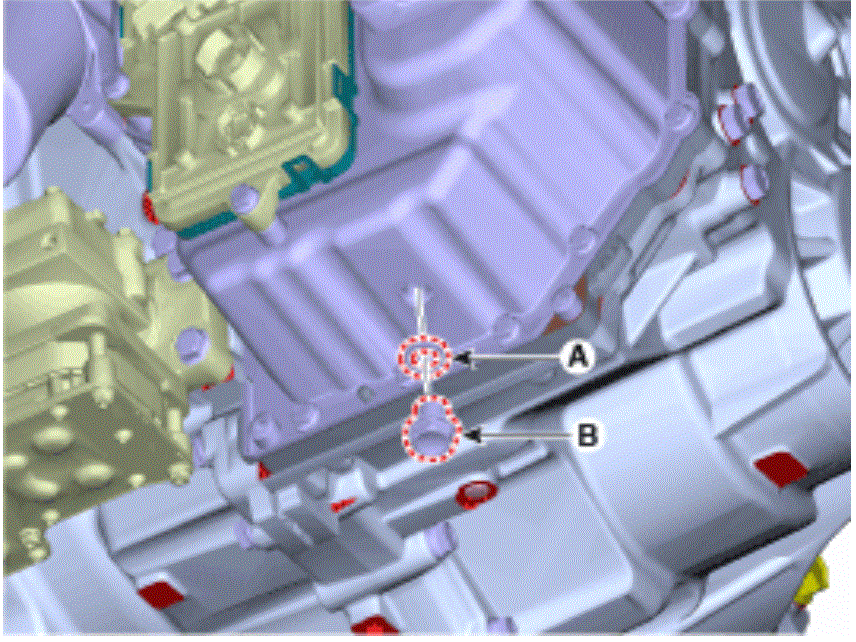

4. Install the drain plug (B) with new gasket (A).

   Tightening torque:

   34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 35.5 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

5. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")

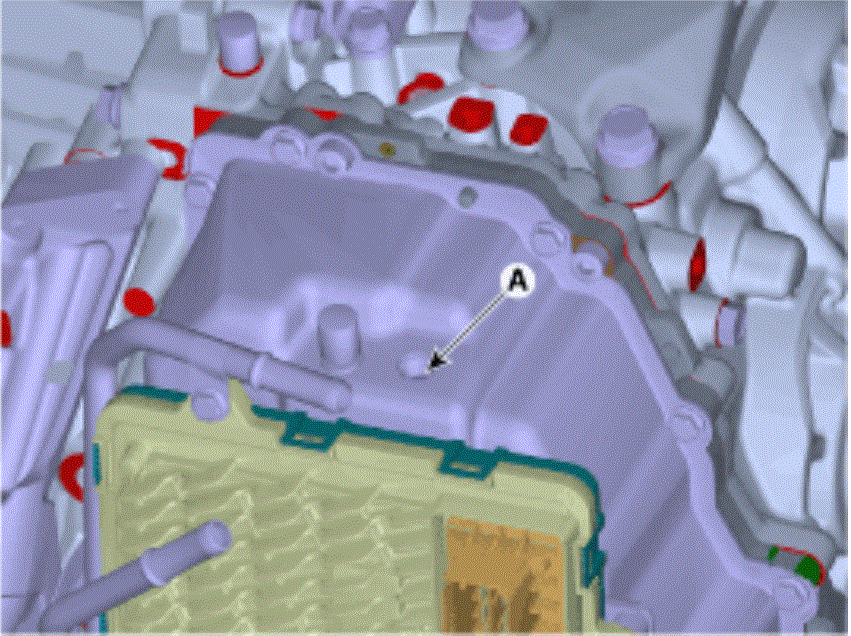

6. Loosen the filler plug (A).

   Courtesy of HYUNDAI MOTOR AMERICA

7. Fill new fluid of 1.8 ~ 1.9 l  through the filler plug hole (A).
   CAUTION:

   • Must only use the oil specified, otherwise, it may seriously damage the transmission.

   fluid specified:  GS WDCTF HD H (WET DCT HYDRAULIC CONTROL OIL)

   Courtesy of HYUNDAI MOTOR AMERICA

8. After starting up the engine, drive the vehicle forward/backward more than 1 time,
9. Add fluid while checking the fluid level. (Hydraulic System - "Dual Clutch Transmission Control Oil")

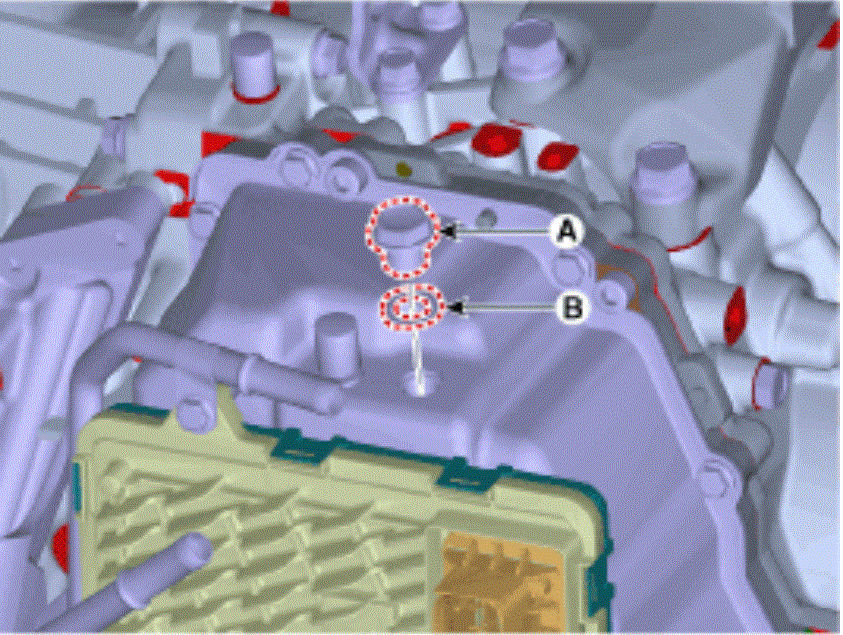

10. Install the filler plug (A) with new gasket (B).

    Tightening torque:

    34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 35.5 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

    NOTE:

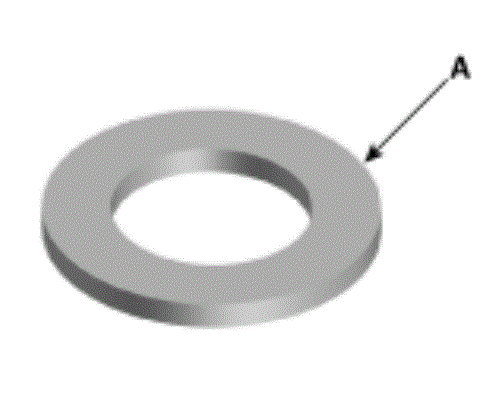

    • The existing gasket (A) must be replaced with a new one. (Do not reuse it.)

    Courtesy of HYUNDAI MOTOR AMERICA

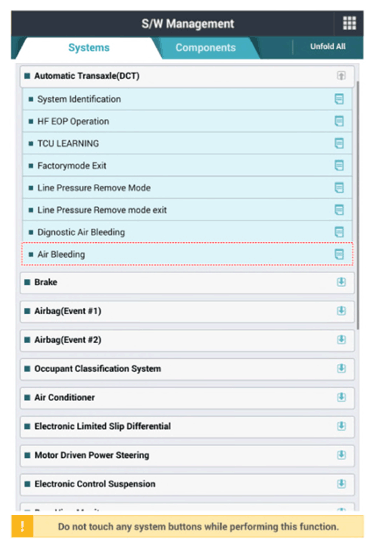

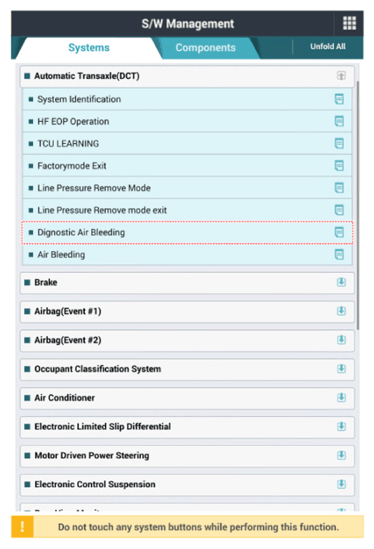

11. After changing the Control Oil, perform the air bleeding diagnosis and the air bleeding procedure using the diagnostic device.

    Courtesy of HYUNDAI MOTOR AMERICA

    Courtesy of HYUNDAI MOTOR AMERICA

12. Install the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "AIR CLEANER ")
