Components and Components Location

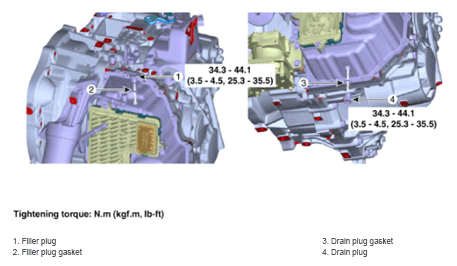

Fig 1: Dual Clutch Transmission Control Oil Components Location With Torque Specification
G15474849Courtesy of HYUNDAI MOTOR AMERICA
