Transaxle Mounting Bracket

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover. (Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
  3. Remove the air duct and air cleaner assembly. (Refer to Intake and Exhaust System - "AIR CLEANER ")
  4. Remove the battery. (Refer to Engine Electrical System - "BATTERY ")
  5. Remove the engine control module (ECM). (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
  6. Remove the battery tray. (Refer to Engine Electrical System - "BATTERY ")
  7. Remove the front wheel guard. (Refer to Body (Interior and Exterior) - "FRONT WHEEL GUARD ")
  8. Remove the service cover.

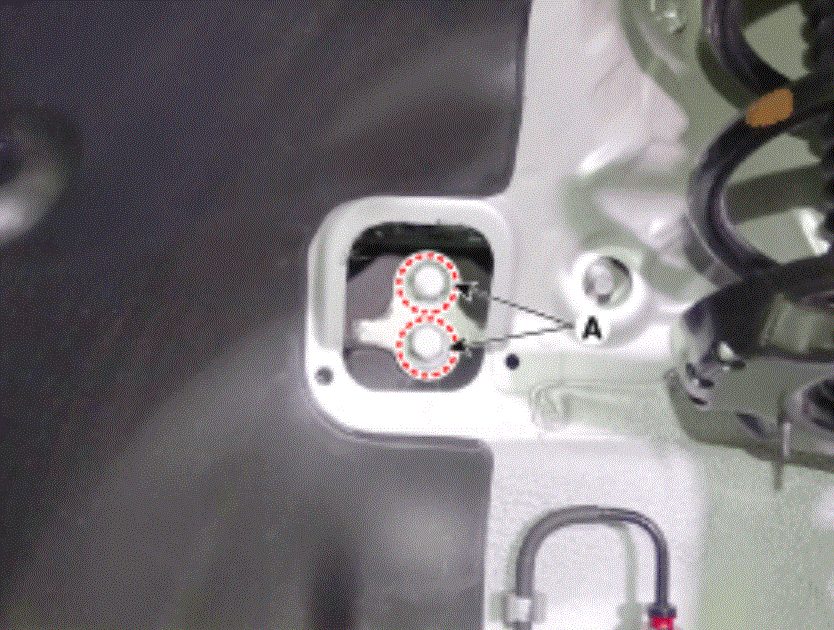

  9. Remove the transaxle support bracket mounting bolts (A).

    Tightening torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb - ft)

    G15471441Courtesy of HYUNDAI MOTOR AMERICA

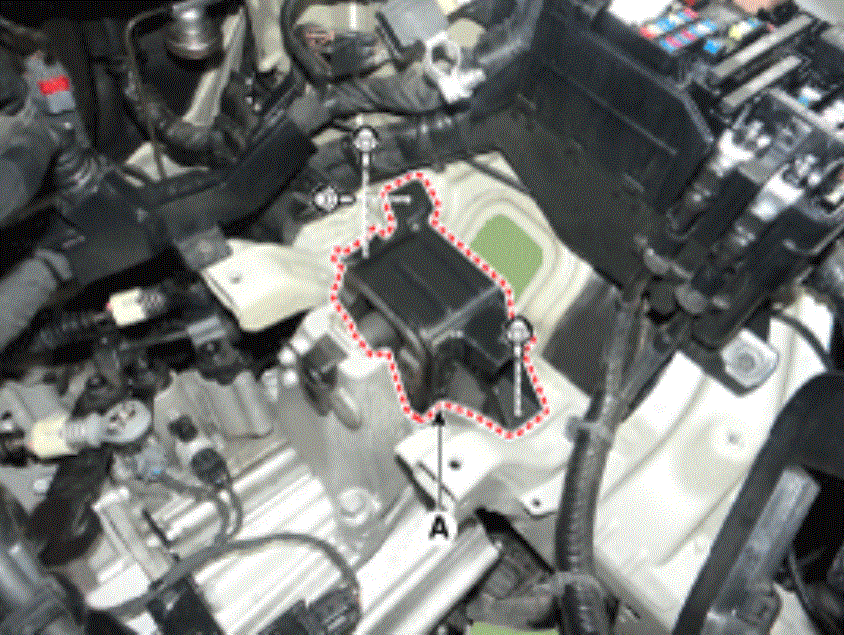

  10. Remove the transaxle mounting bracket (A).

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb - ft)

    G15471442Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Do not reuse the transaxle mounting bolts (A).
    • Fasten the transaxle mounting bracket with its matching surface with the support bracket closely in contact.
  11. Install in the reverse order of removal.
