Roll Rod Bracket

Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

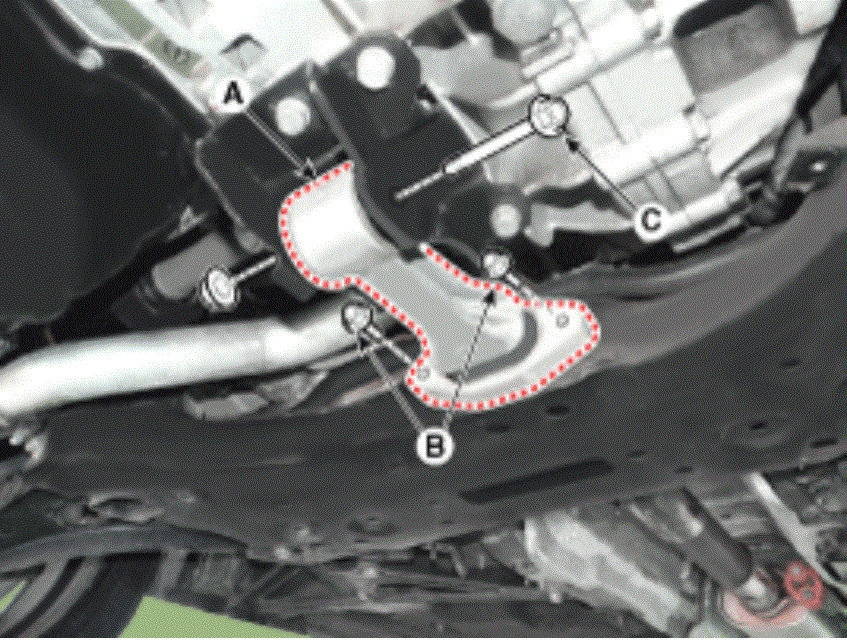

Remove the roll rod bracket (A).
Tightening torque

Bolts (B):

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb - ft)

Bolt (C):

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb - ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Do not reused roll rod bracket mounting bolt (C).

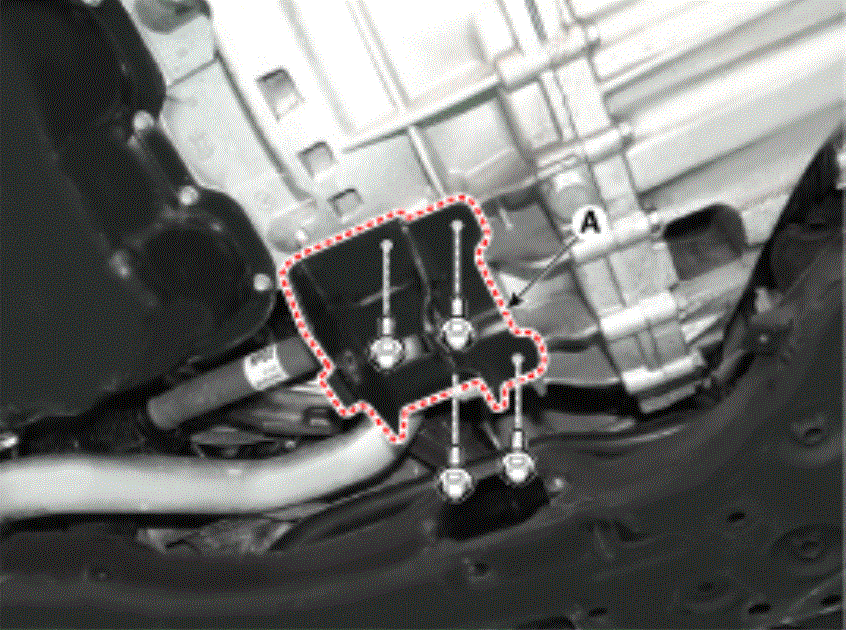

Remove the roll rod mounting support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb - ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
