Engine Mounting Bracket
- Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Install the jack to the edge of oil pan to support the engine.NOTE:
- Insert the rubber block between jack and oil pan.
- Separate the reservoir tank. (Refer to Cooling System - "RESERVOIR TANK ")

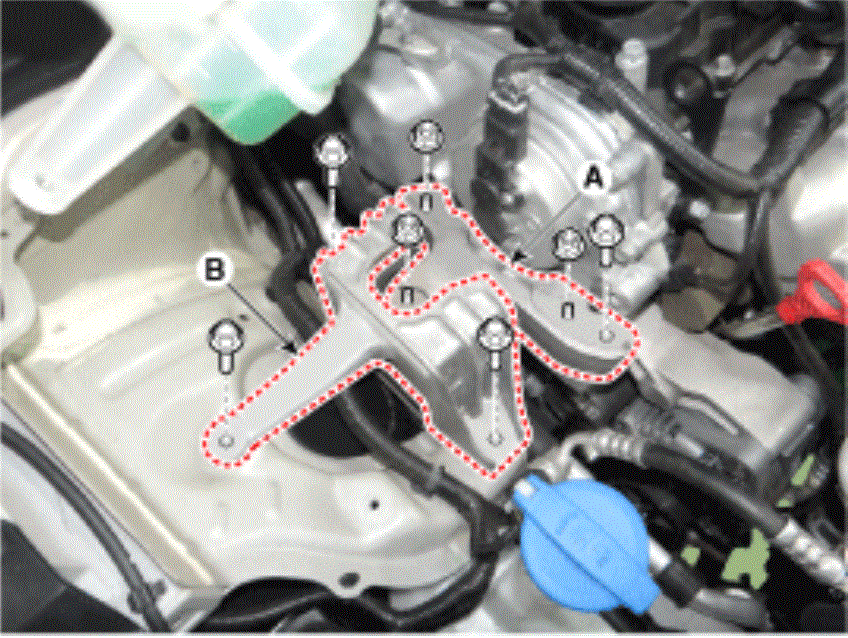

- Remove the engine mounting support bracket (A).
Tightening torque
Engine Mounting Bracket Upper Nut:
78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb - ft)
Mounting Bolt & Nuts:
63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 46.9 - 54.2 lb - ft)
- Remove the engine mounting bracket (B).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb - ft)
- Install in the reverse order of removal.
