Components And Components Location: Components

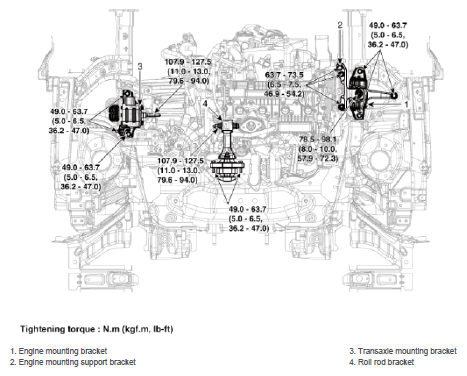

Fig 1: Engine Mounting Components Location With Torque Specification

G15471437

Courtesy of HYUNDAI MOTOR AMERICA
