Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the heater & A/C control unit (FATC). (Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT (FATC) ")

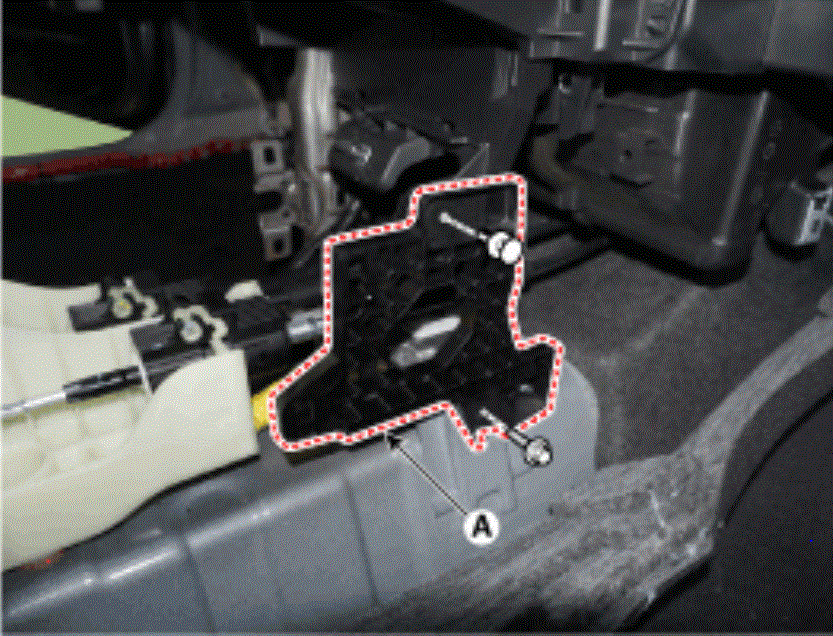

  3. Remove the crash pad center lower cover [RH] (A).
    G15475161Courtesy of HYUNDAI MOTOR AMERICA

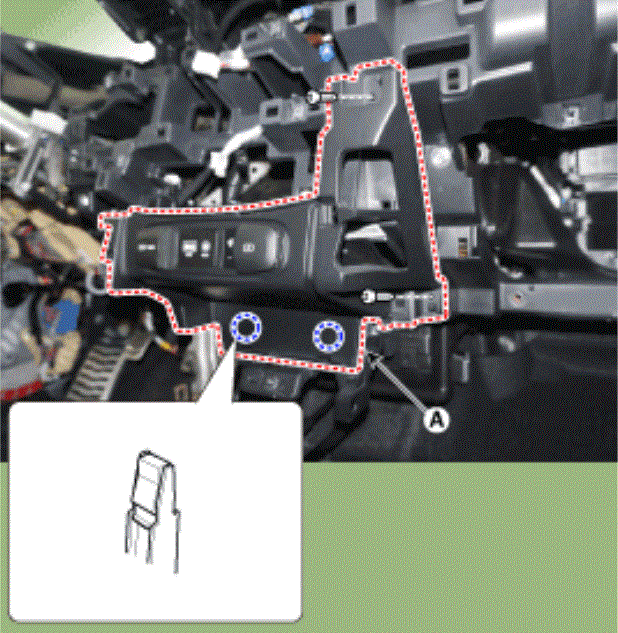

  4. Remove the center Fascia lower panel (A) after loosen the screw.
    G15475162Courtesy of HYUNDAI MOTOR AMERICA

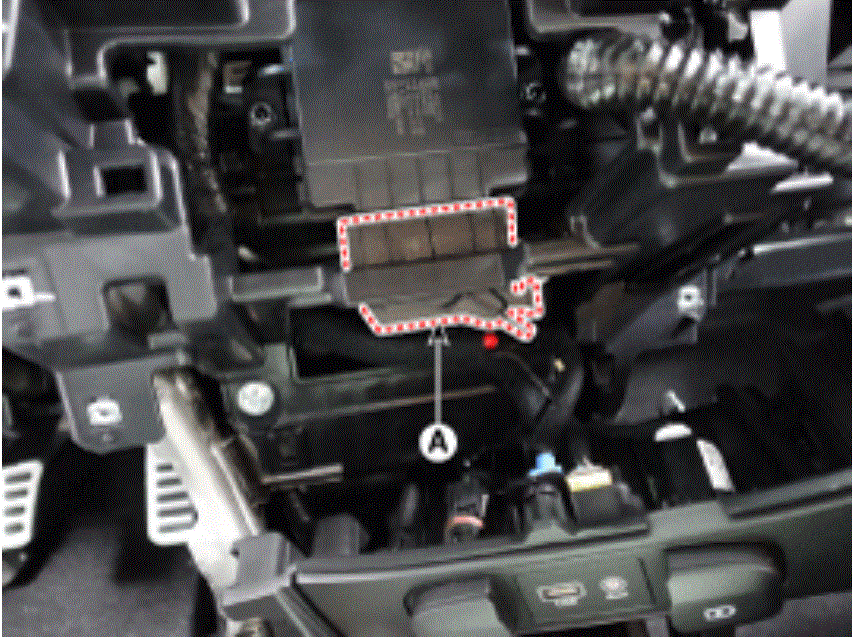

  5. Disconnect the ECS control unit connector (A).
    G15475163Courtesy of HYUNDAI MOTOR AMERICA

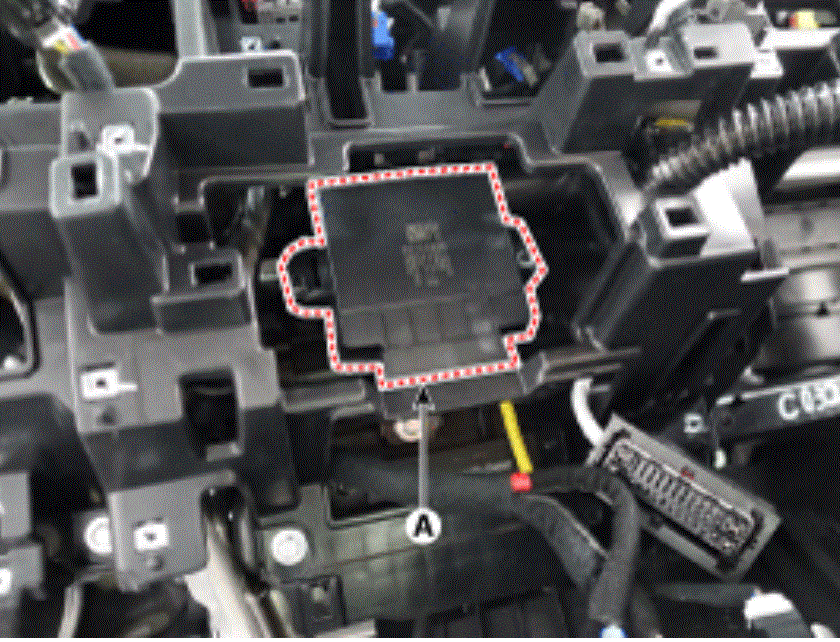

  6. Remove the ECS control unit (A) after loosen the mounting nut and bolts.
    G15475164Courtesy of HYUNDAI MOTOR AMERICA
