Repair Procedures: Inspection

  1. Measure a resistance of NTC and Heated pad.
    • NTC resistance - 10.0 kΩ ± 5 % (25°C)
    • Heated pad resistance - 1.80 Ω ± 10%
  2. Measure a temperature.
    • The temperature of wheel surface grip must rise from - 20°C to 20°C within 6 minute.
    • The temperature of wheel surface grip must keep 38°C ± 4°C after 25 minute.

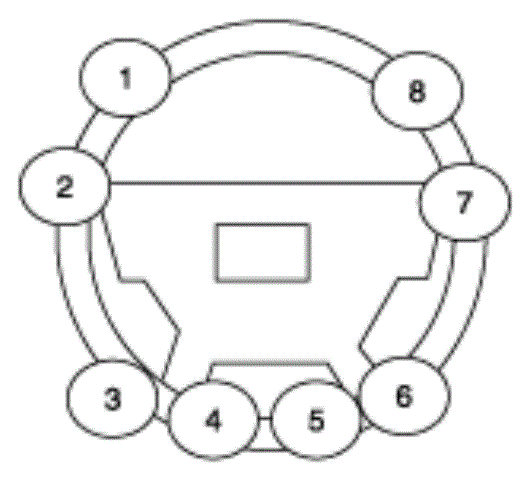

    • 1 to 8 All measuring points.
    G15475258Courtesy of HYUNDAI MOTOR AMERICA

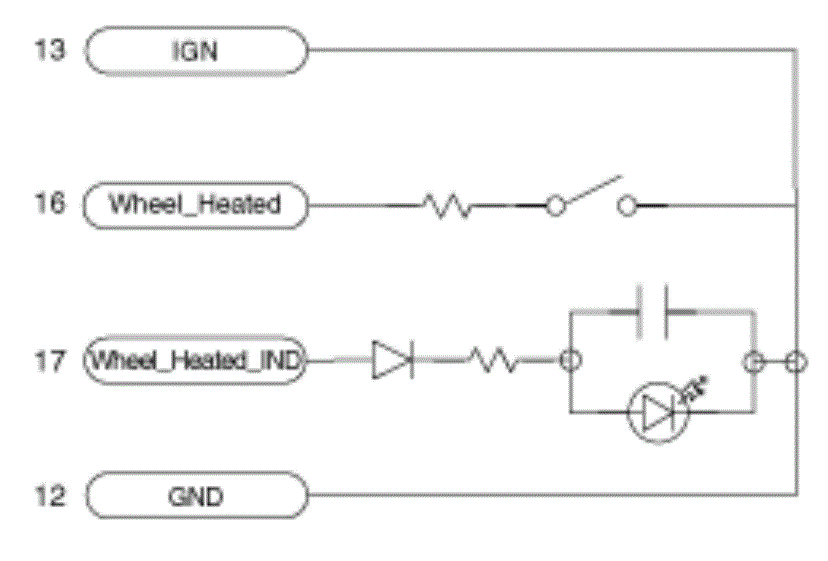

  3. Check for continuity between the terminals in each heated steering switch.
    G15475259Courtesy of HYUNDAI MOTOR AMERICA
