Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the front seat assembly. (Refer to Body - "FRONT SEAT ASSEMBLY ")
  3. Remove the seat back cover. (Refer to Body - "FRONT SEAT BACK COVER ")

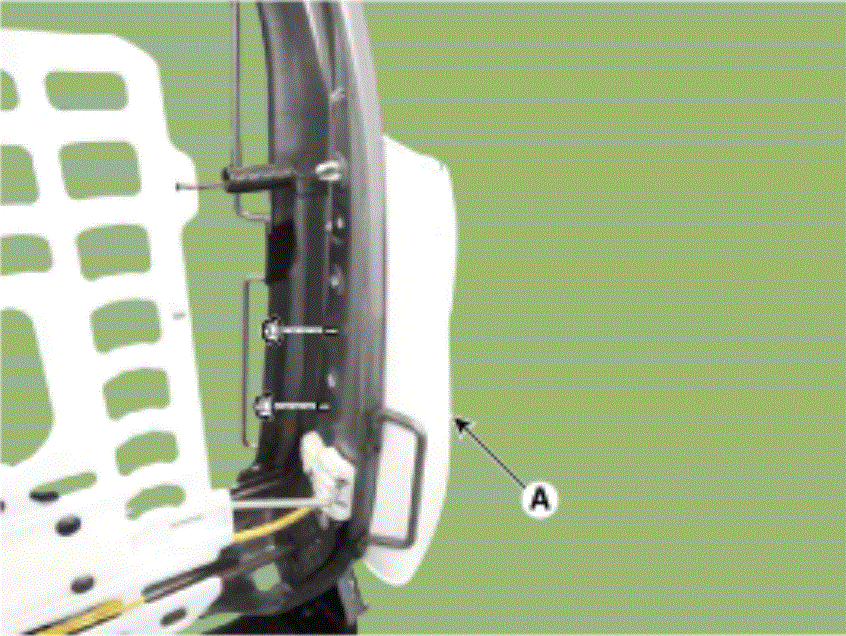

  4. Loosen side airbag mounting nuts and remove the side airbag.
    G15483243Courtesy of HYUNDAI MOTOR AMERICA
