Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim. (Refer to Body - "ROOF TRIM ASSEMBLY ")

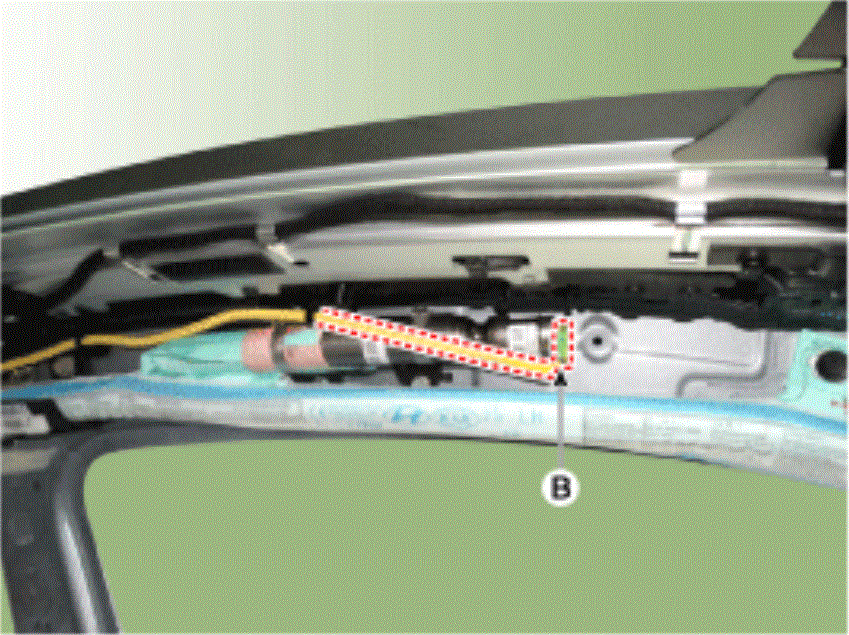

  3. Disconnect the curtain airbag harness connector (B).
    G15483245Courtesy of HYUNDAI MOTOR AMERICA

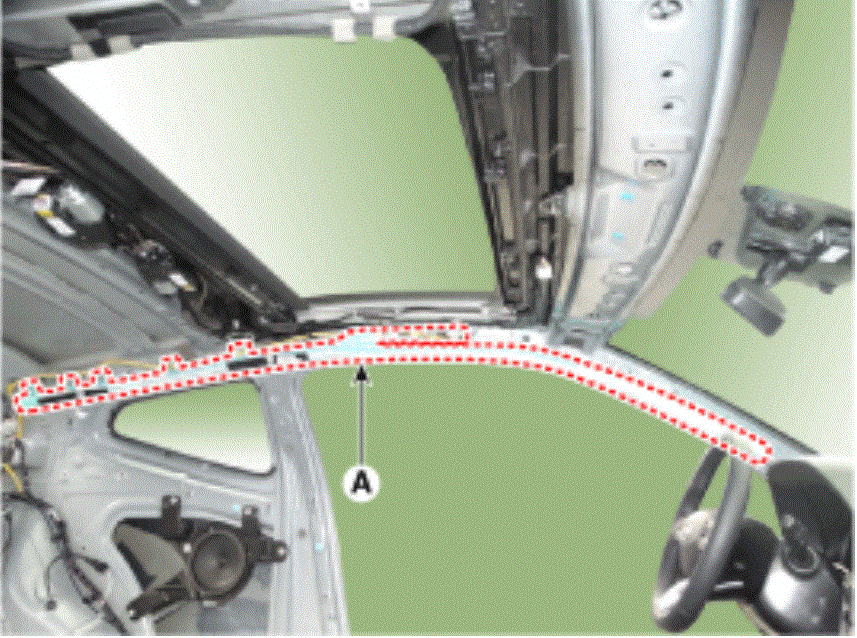

  4. After loosening the mounting bolts and nuts remove the curtain airbag (A).
    G15483246Courtesy of HYUNDAI MOTOR AMERICA
