Repair Procedures: Removal

WARNING:

In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Release the residual pressure in fuel line. (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
CAUTION:
- When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur.
Delete the code with the diagnostic tool after completion of "Release Residual Pressure in Fuel Line" work.
Remove the intercooler inlet hoses & pipe. (Refer to Engine Mechanical System - "INTERCOOLER ")
Remove the pump foam.

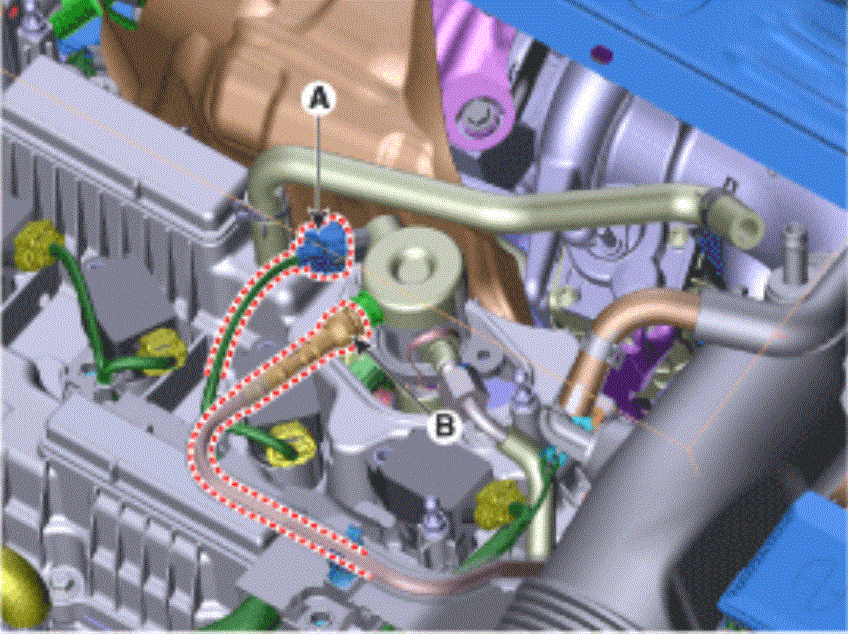

Disconnect the fuel pressure control valve connector (A) and the fuel feed tube quick - connector (B).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:

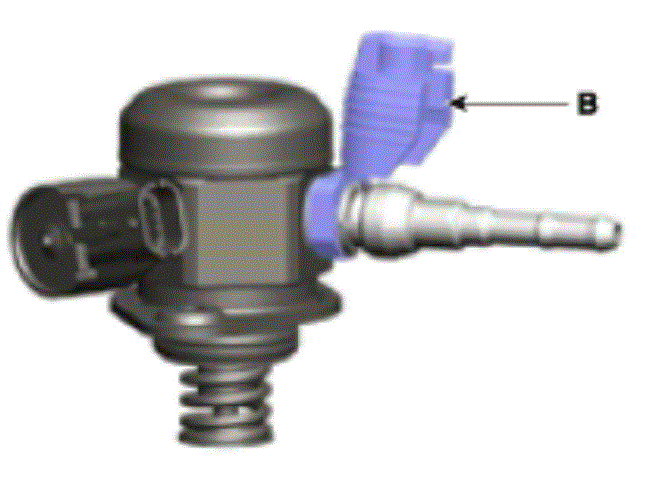

- Open the clamp cover (B) before disconnecting the quick - connector. (If the clip is applied)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CAUTION:

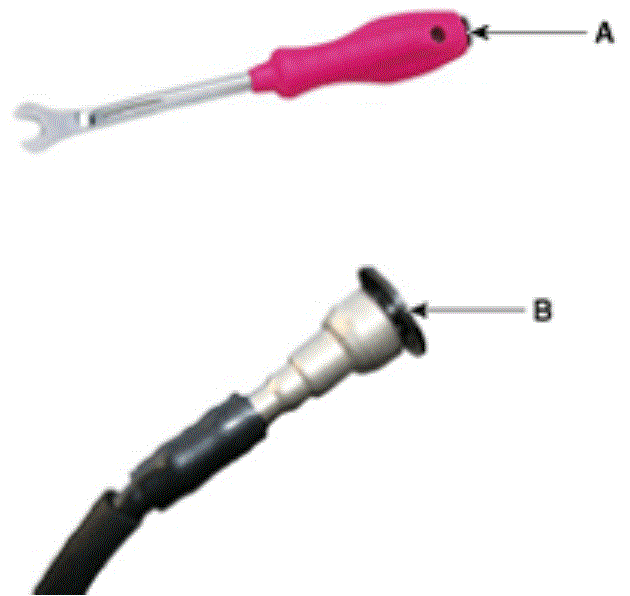

- When removing the quick-connector with the clip removing tool (A), be careful not to damage the plastic clip (B).
- If the clip is damaged, fuel line leak can be occurred due to a bad connection. This may be the cause of the fire.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove t he high pressure fuel pipe.

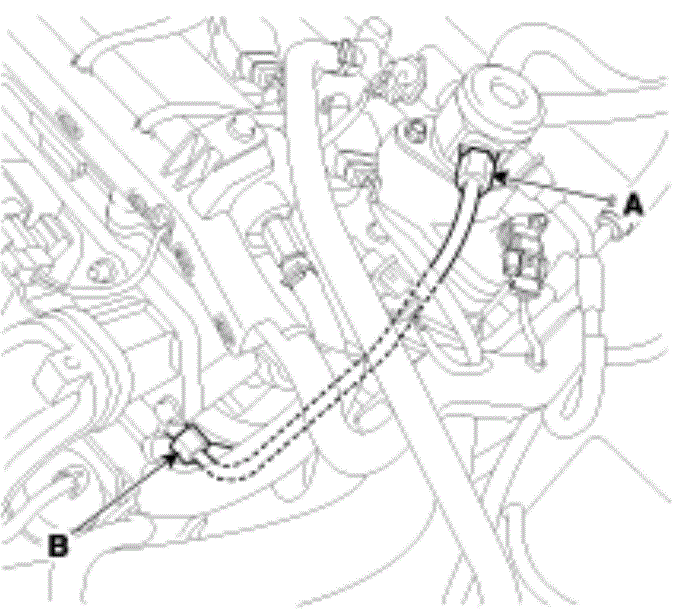

Remove the high pressure flange nut in order of (A, B) with the special service tool [SST No.: 09314 - 3Q100].

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

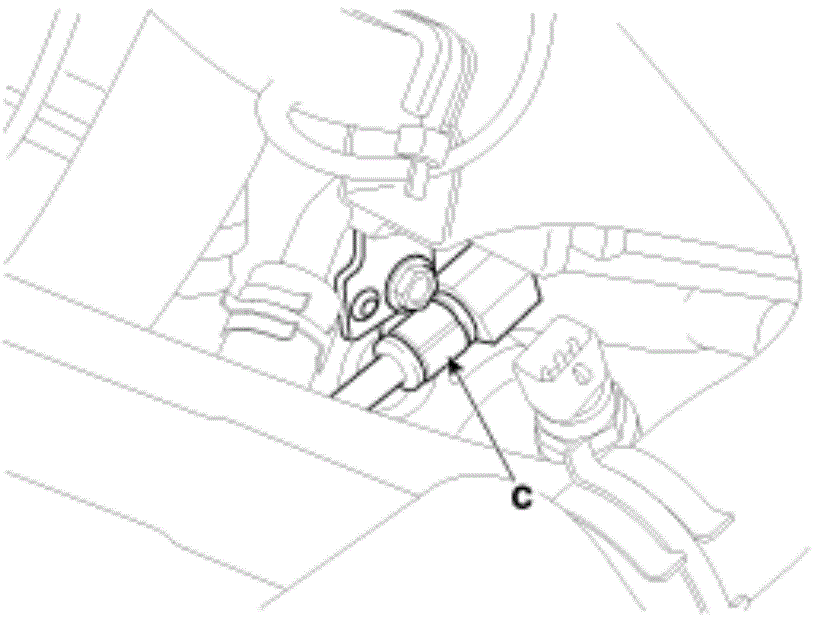

Remove the function block installation bolt (C).

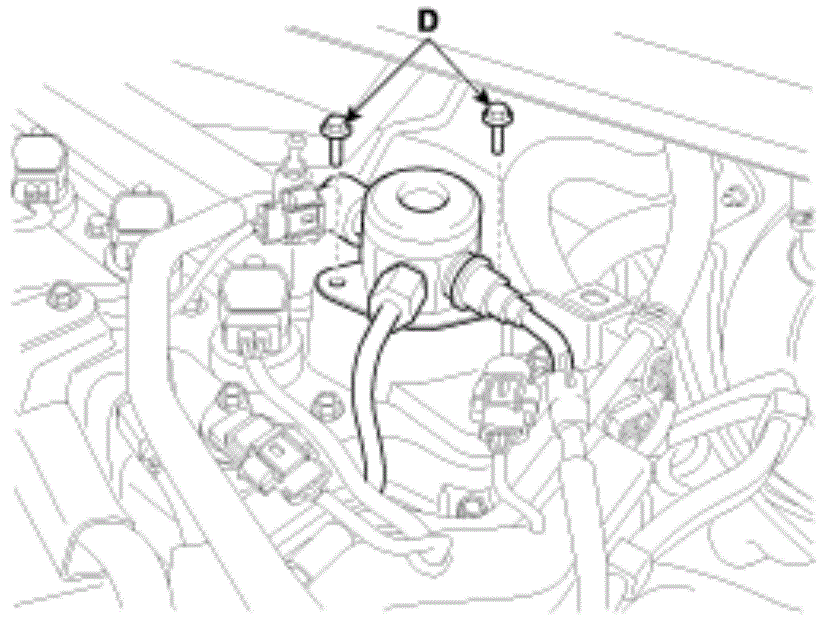

Remove the installation bolts (D), and then remove the high pressure fuel pump from the cylinder head assembly.
CAUTION:
- Unscrew in turn the two bolts in small step (0.5 turns). In case of fully unscrewing one of the two bolts with the other bolt installed, the housing surface of the cylinder head may be broken because of tension of the pump spring.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
