Repair Procedures: Removal

  1. Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
  2. Remove the passenger side front tire. (Refer to Suspension System - "WHEEL ")
  3. Install the jack to the edge of oil pan to support the engine.
    NOTE:
    • Insert the rubber block between jack and oil pan.
  4. For release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).

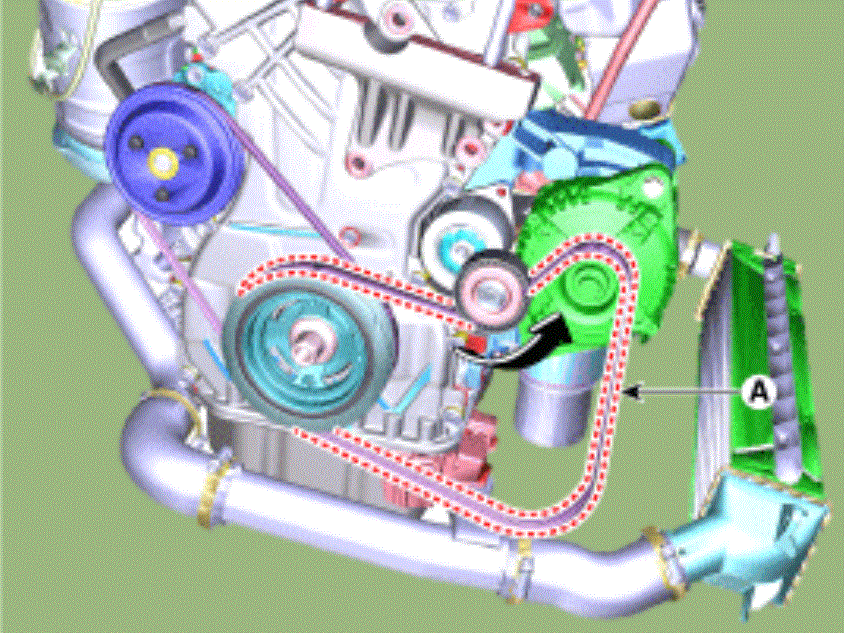

    G15471466Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the water pump belt.
    1. Insert the SST (09252 - C1000) between the water pump pulley and the water pump belt.
    2. Remove the water pump belt (A) by turning the crankshaft damper pulley clockwise.

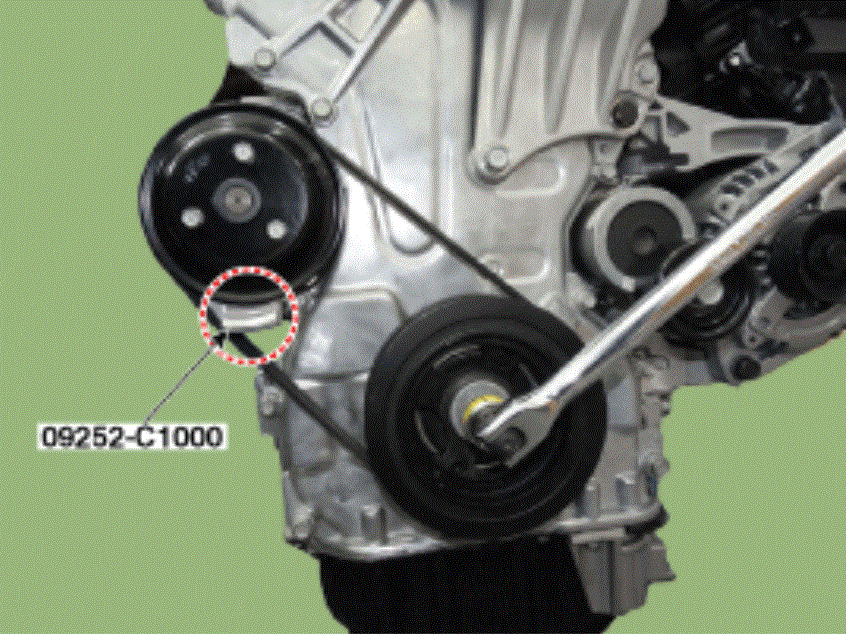

    G15471467Courtesy of HYUNDAI MOTOR AMERICA

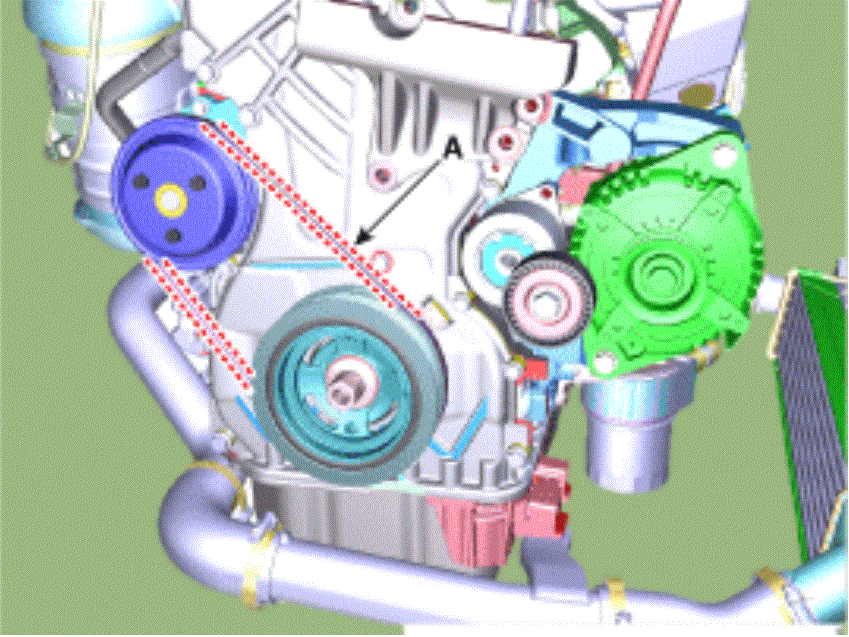

    G15471468Courtesy of HYUNDAI MOTOR AMERICA
