Home >> Hyundai >> 2021 >> Veloster N Standard Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Cylinder Block >> Piston & Connecting Rod >> Components And Components Location >> Components

Components And Components Location: Components

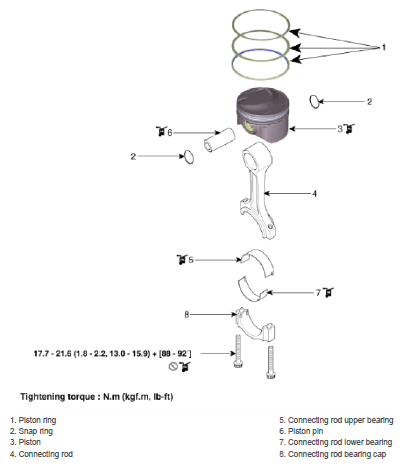

Fig 1: Piston & Connecting Rod Components Location With Torque Specification

G15471599

Courtesy of HYUNDAI MOTOR AMERICA
