Components And Components Location: Components

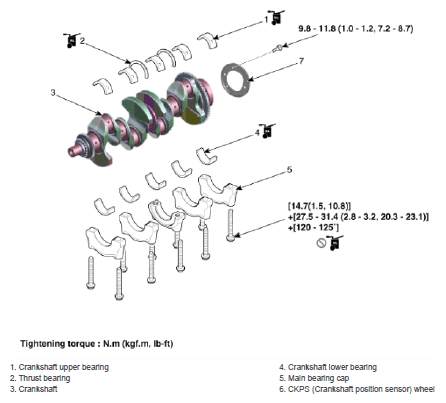

Fig 1: Crankshaft Components Location With Torque Specification

G15471619

Courtesy of HYUNDAI MOTOR AMERICA
