Repair Procedures: Removal

  1. Remove the drive belt. (Refer to Timing System - "DRIVE BELT ")

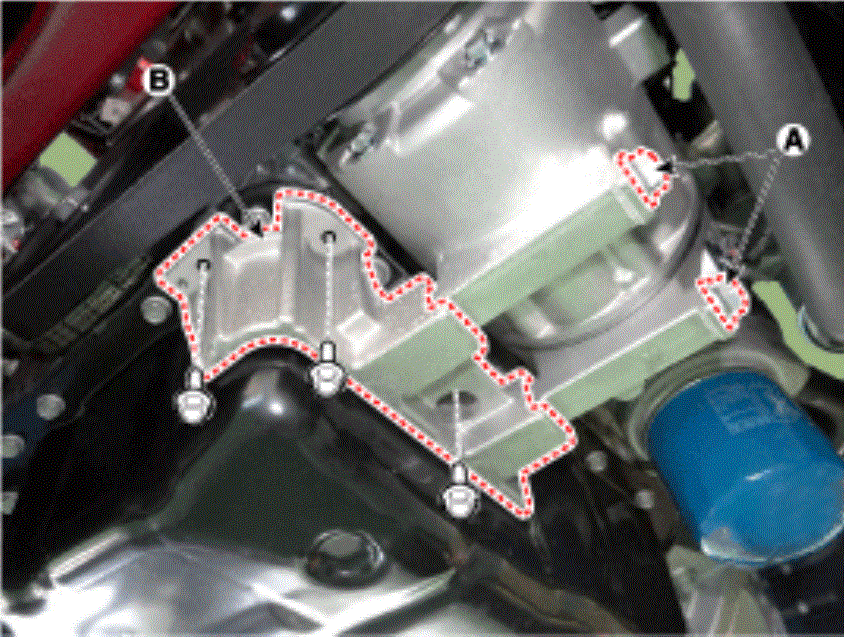

  2. Remove the A/C compressor lower mounting bolts (A).
  3. Remove the A/C compressor bracket (B).
    G15471700Courtesy of HYUNDAI MOTOR AMERICA
  4. Drain the engine oil. (Refer to Lubrication System - "ENGINE OIL ")

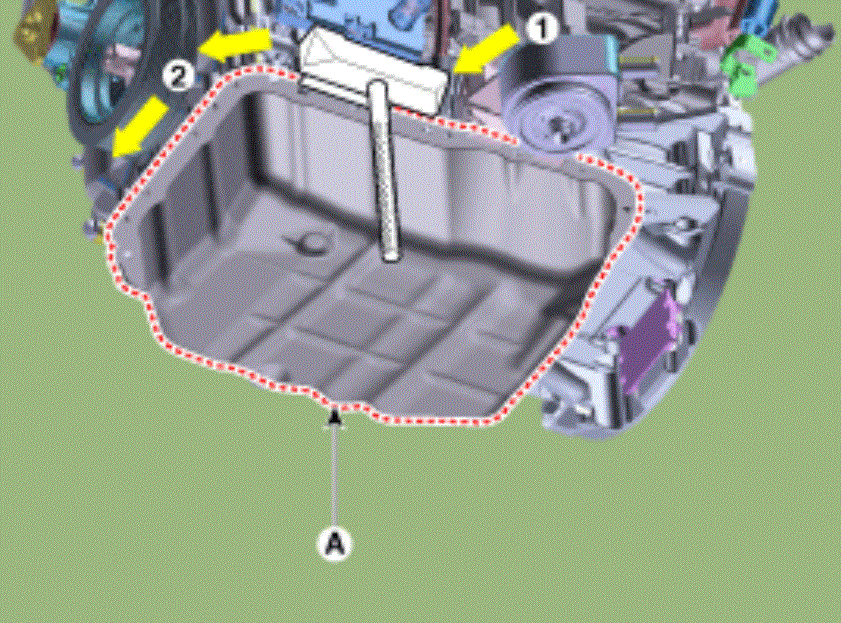

  5. Remove the oil pan (A). Insert the blade of SST (09215 - 3C000) between the ladder frame and oil pan. Cut off applied sealer and remove the lower oil pan.
    G15471701Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of (1) arrow.
    • After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
    • Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
