Repair Procedures: Installation

  1. Apply a light coat of engine oil to the oil cooler packing surface, and then install the oil cooler assembly (A).

    Tightening torque:

    44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb - ft)

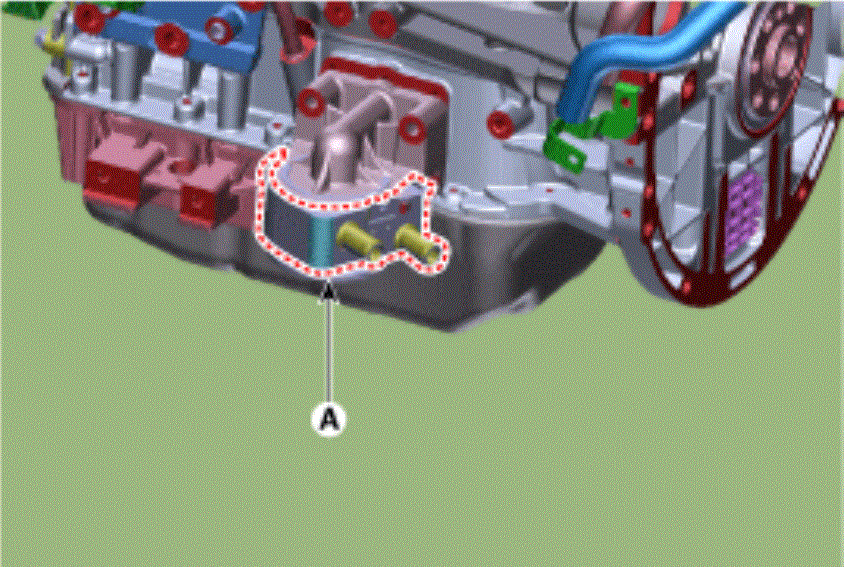

    G15471697Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Fix position of oil cooler stopper (A) where oil cooler resists on ladder frame stopper (B).

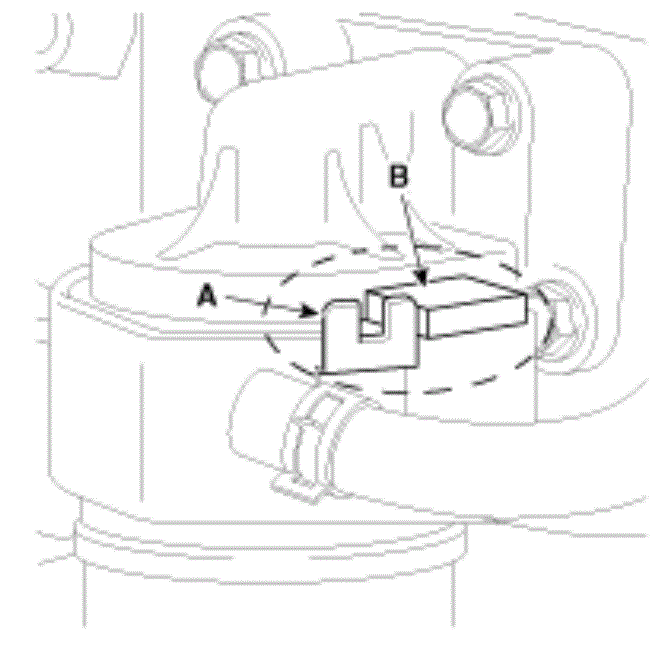

    G15471698Courtesy of HYUNDAI MOTOR AMERICA
  2. Apply a light coat of engine oil to the oil filter packing surface, and then install the oil filter. (Refer to Lubrication System - "ENGINE OIL ")
  3. Install the oil cooler coolant hoses (A).

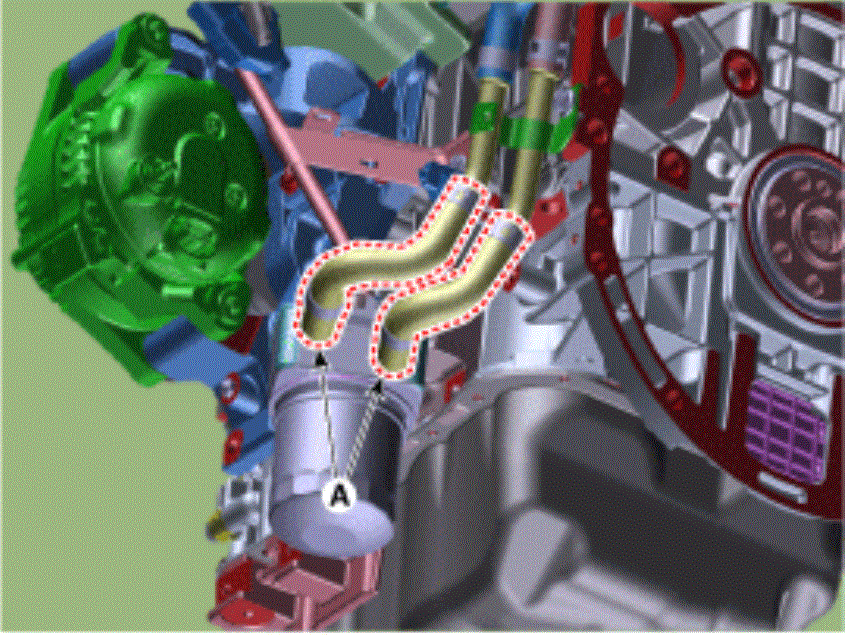

    G15471699Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
  5. Fill with engine coolant. (Refer to Cooling System - "COOLANT ")
  6. Start the engine and check for leaks.
  7. Recheck the engine coolant level.
