Components And Components Location: Components

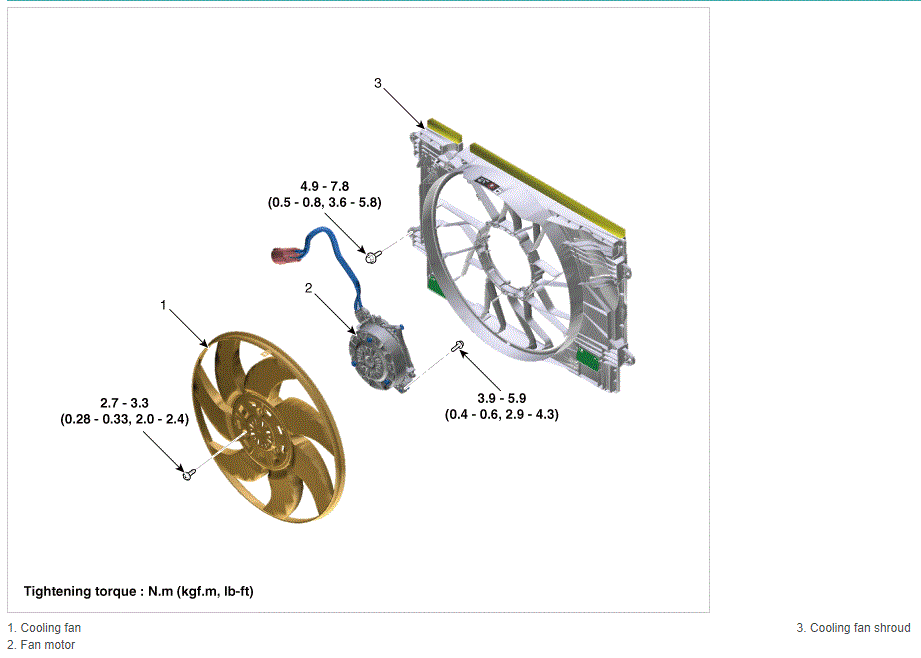

Fig 1: Cooling Fan Components Location With Torque Specification

G15471643

Courtesy of HYUNDAI MOTOR AMERICA
