Battery Tray
- Remove the battery. (Refer to "REMOVAL ")
- Remove the air cleaner assembly. (Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM. (Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")

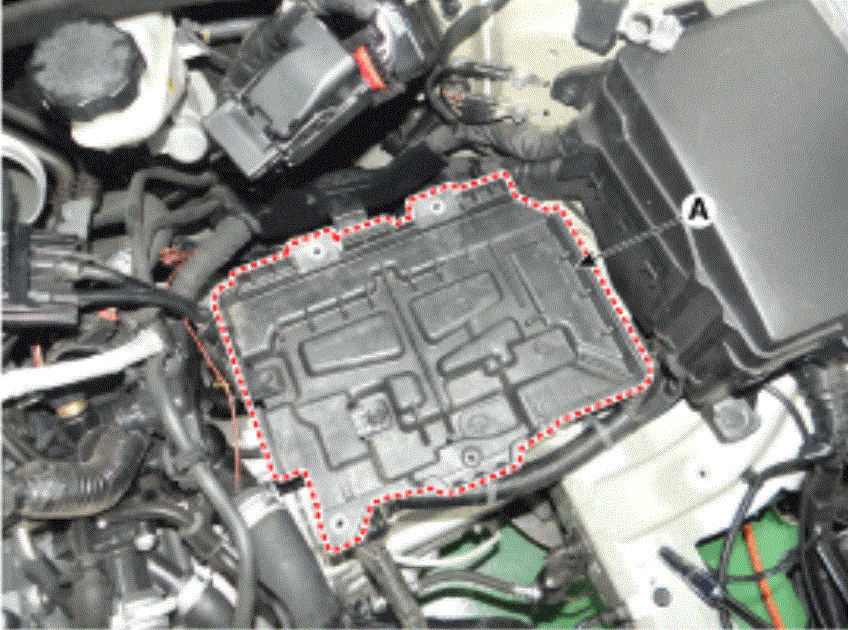

- Remove the battery tray (A) after loosening the bolts.
Battery tray mounting bolt:
10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb - ft)
