Seat Control Switch

  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch (A).

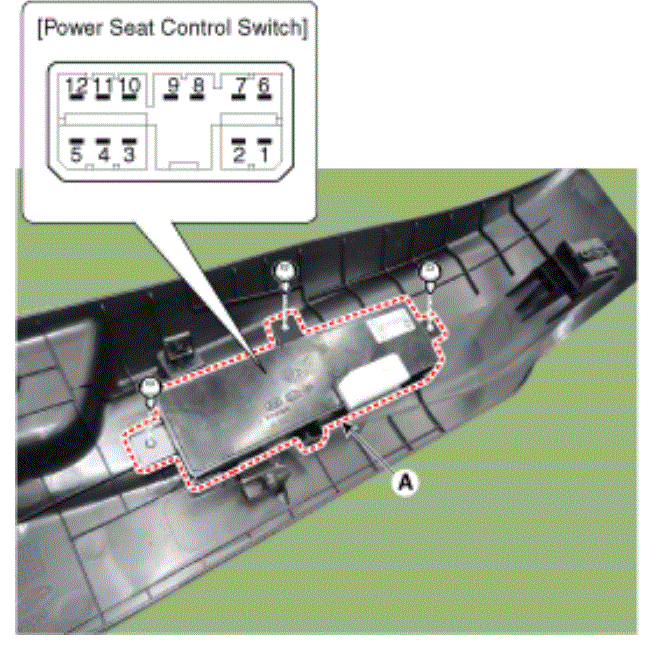

    G15496513Courtesy of HYUNDAI MOTOR AMERICA

    [Power seat control switch]

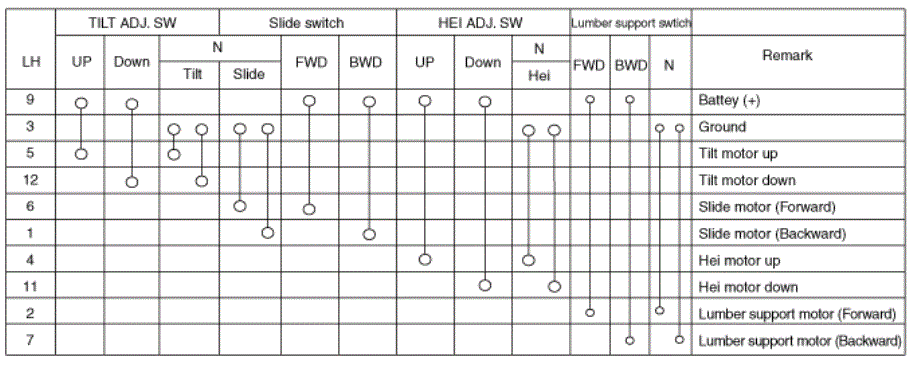

    G15496514Courtesy of HYUNDAI MOTOR AMERICA
