Repair Procedures: Replacement

NOTE:
  • When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat back assembly [LH]. (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

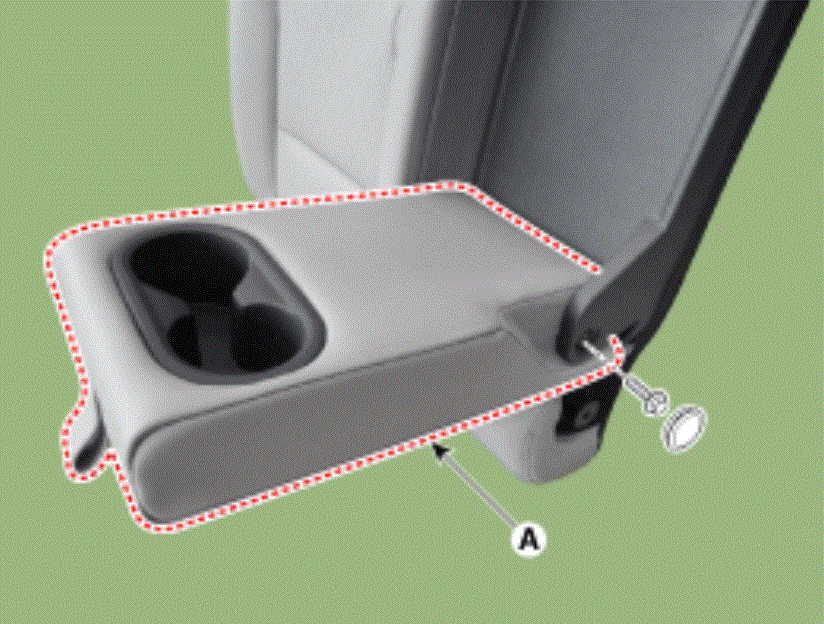

  2. After loosening the mounting bolt, remove the rear back armrest (A).
    G15494795Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.
