Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
Information
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front seat assembly. (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

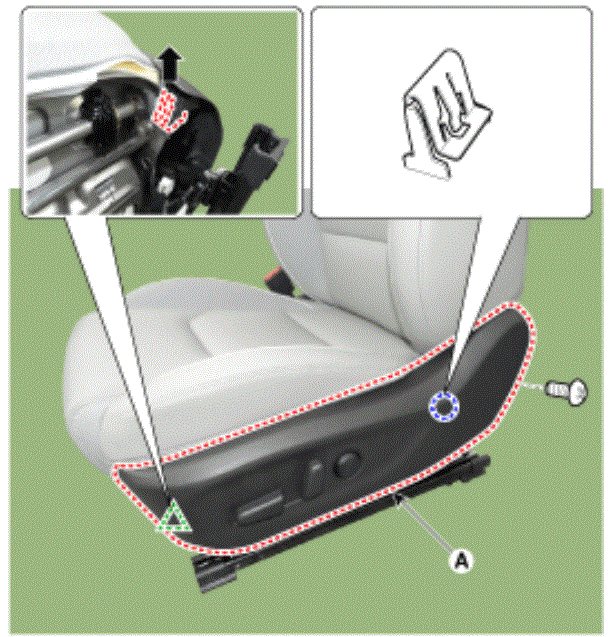

- Remove the front seat outer shield cover (A) by pulling forward in the direction of the arrow using screw driver or remover.

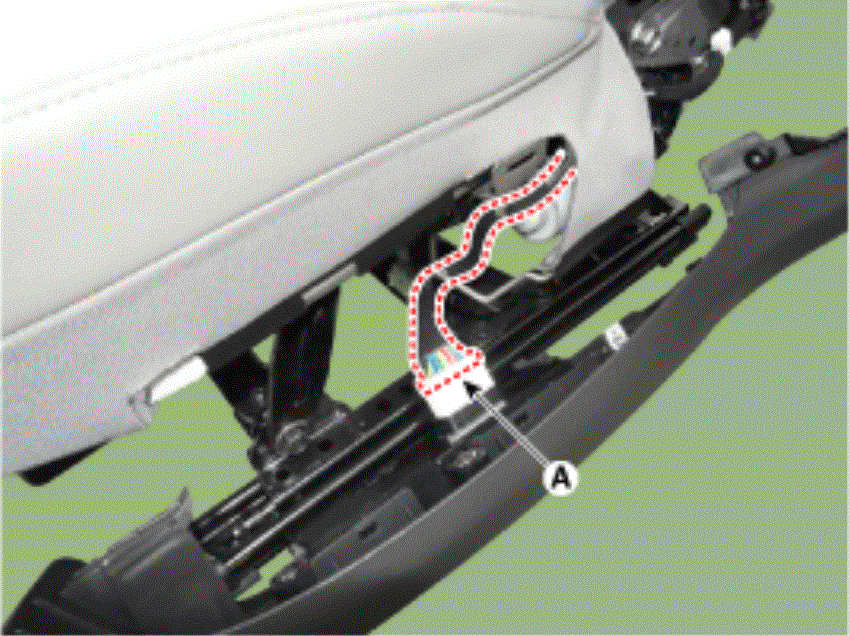

- Disconnect the front seat power switch connector (A).
- To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
