Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat assembly. (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
  2. Remove the front seat shield inner cover. (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")
  3. Remove the front seat shield outer cover. (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

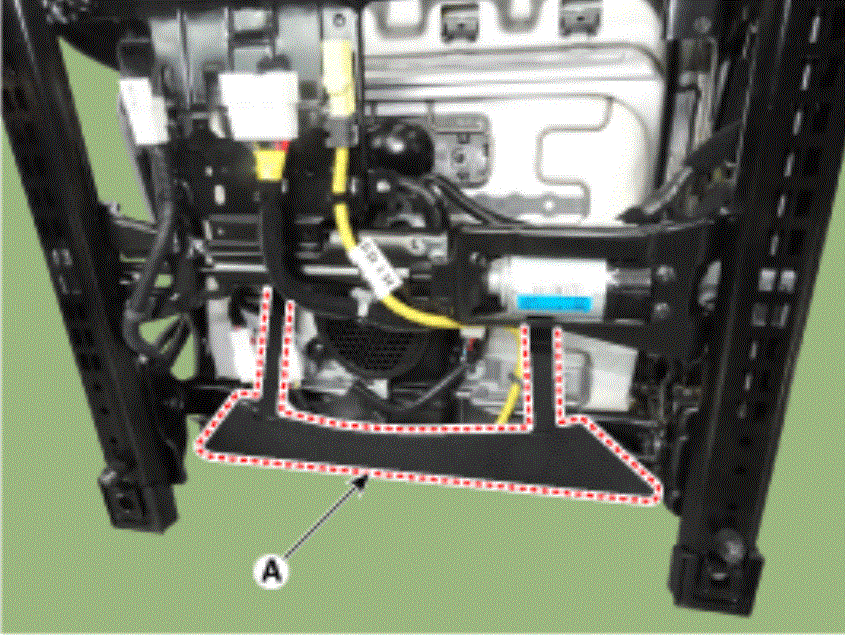

  4. Remove the front seat lower protector (A).
    G15494748Courtesy of HYUNDAI MOTOR AMERICA

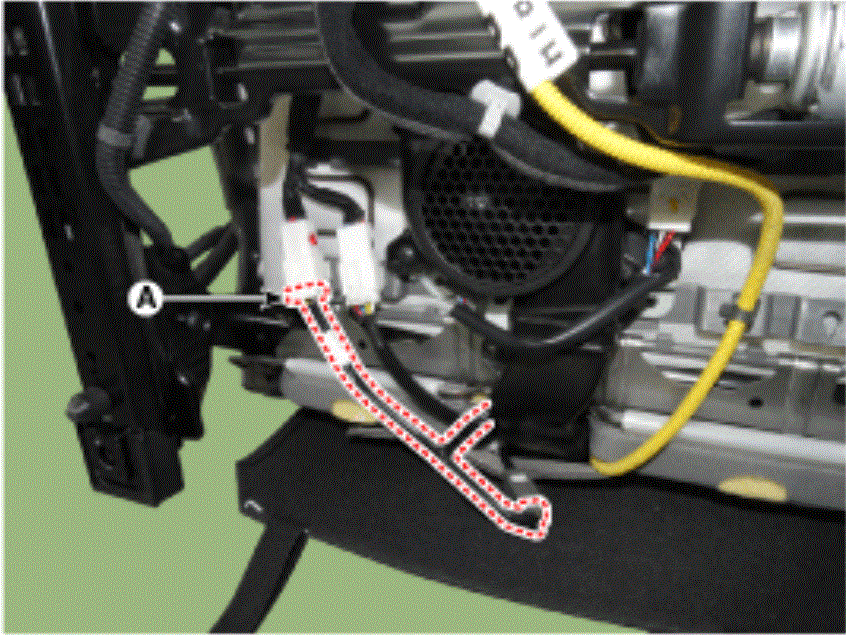

  5. Disconnect the connectors (A).
    G15494749Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the protector (A) from the front seat cushion frame.

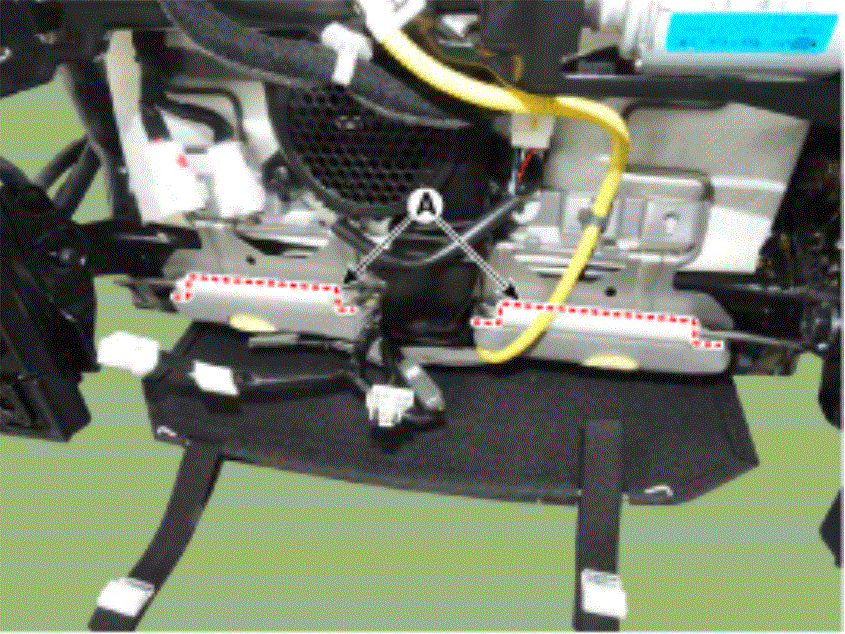

    [Lower]

    G15494750Courtesy of HYUNDAI MOTOR AMERICA

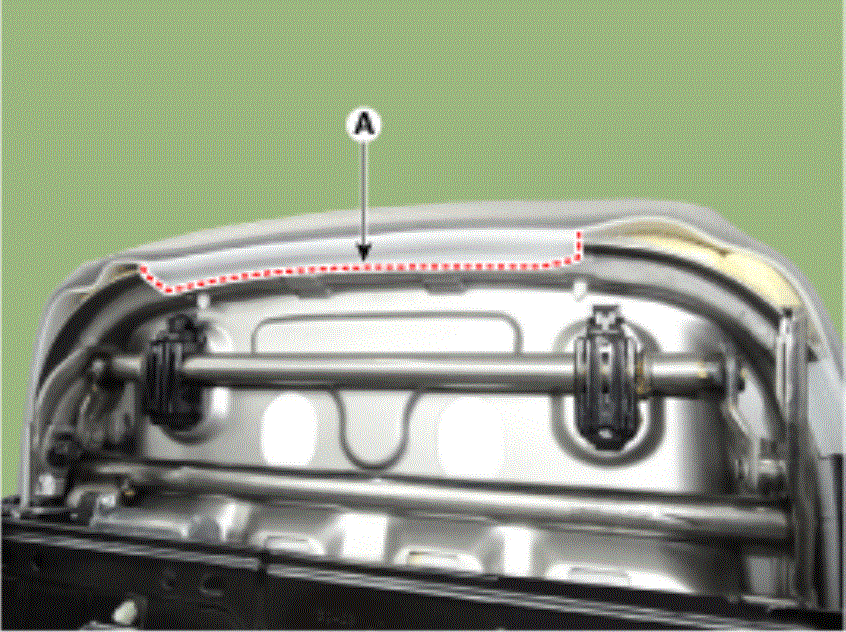

    [Upper]

    G15494751Courtesy of HYUNDAI MOTOR AMERICA

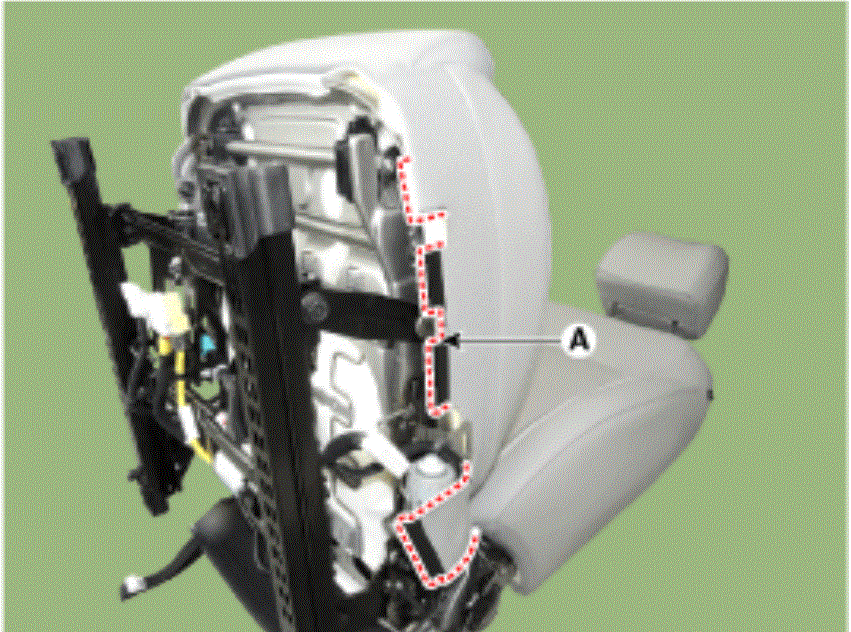

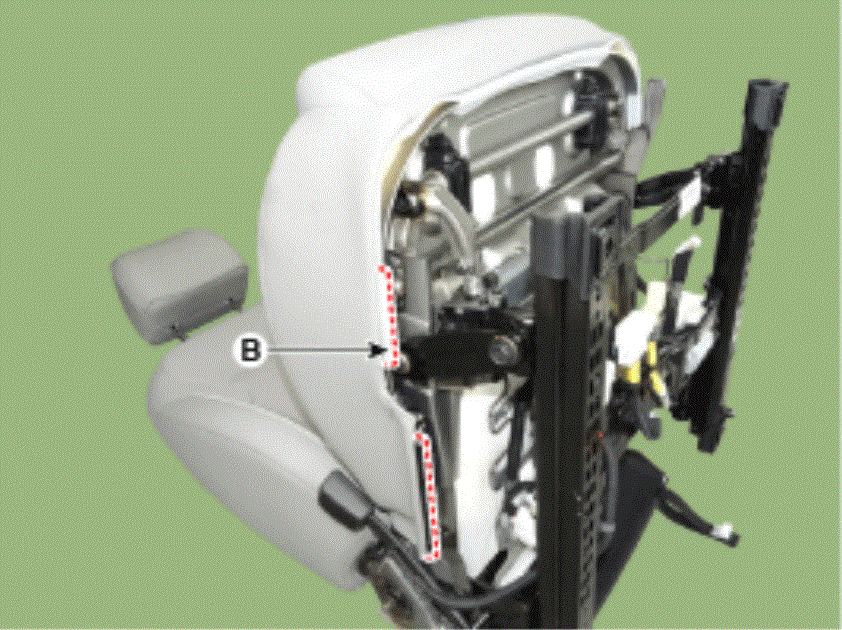

    [LH]

    G15494752Courtesy of HYUNDAI MOTOR AMERICA
    G15494753Courtesy of HYUNDAI MOTOR AMERICA

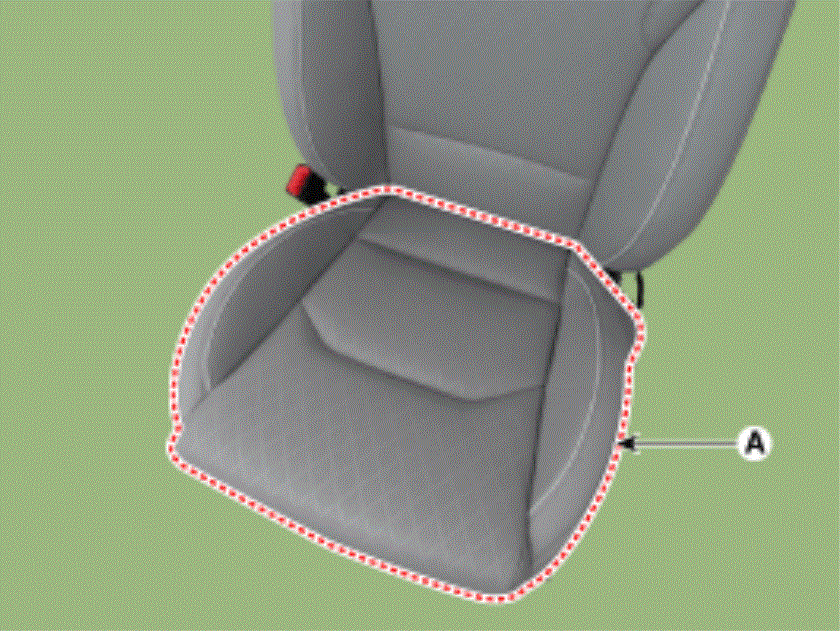

  7. Remove the front seat cushion cover (A) from the front seat cushion frame.
    G15494754Courtesy of HYUNDAI MOTOR AMERICA

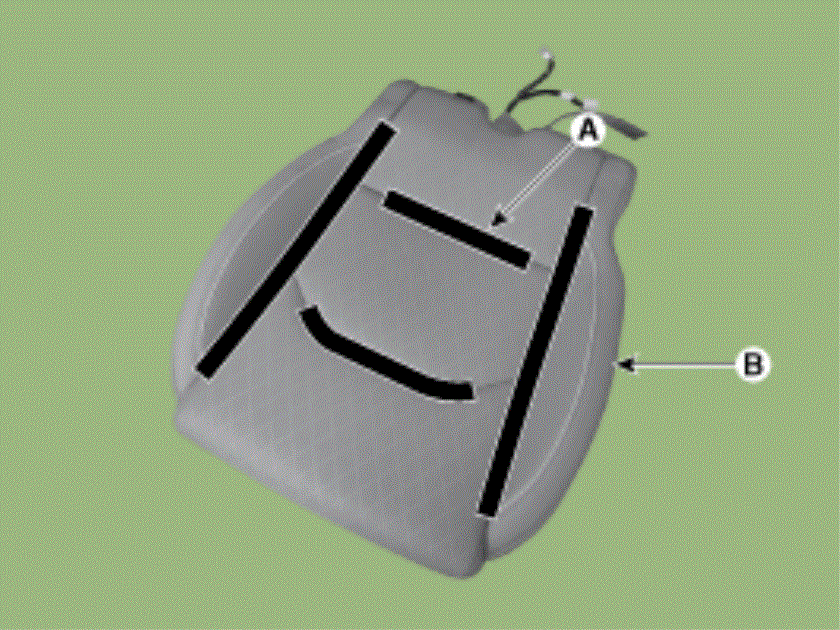

  8. After removing the Velcro tape (A) inside the front seat cushion cover, remove the seat cushion cover (B).
    G15494755Courtesy of HYUNDAI MOTOR AMERICA

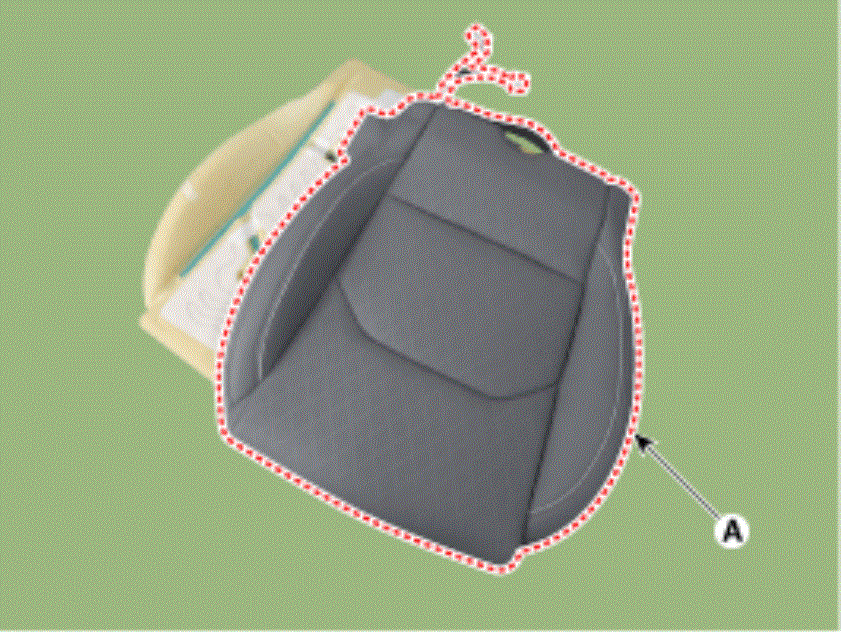

  9. Remove the front seat cushion cover (A) from the front seat cushion pad.
    G15494756Courtesy of HYUNDAI MOTOR AMERICA
  10. To install, reverse removal procedure.
