Repair Procedures: Removal

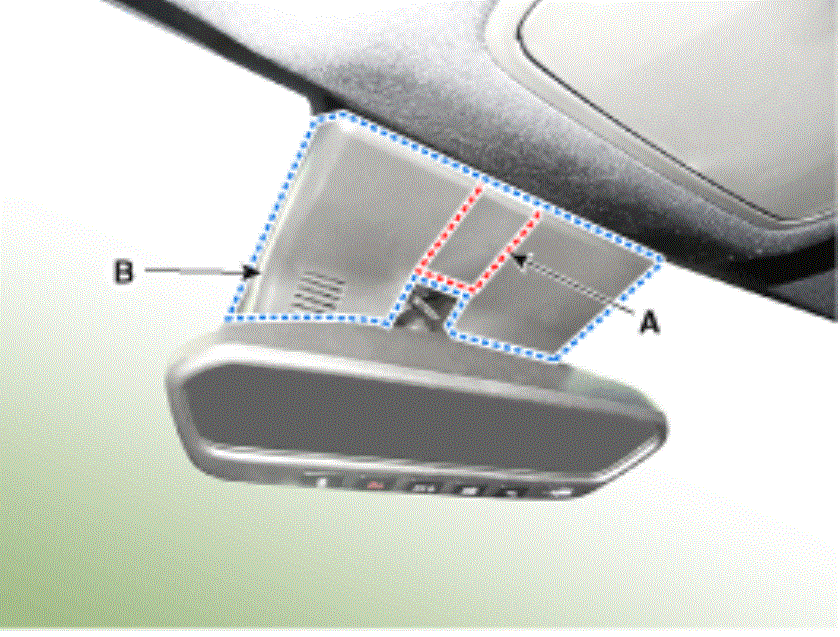

  1. Remove the mirror wiring cover (A).
    G15496789Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the mirror connector (A).
    G15496790Courtesy of HYUNDAI MOTOR AMERICA

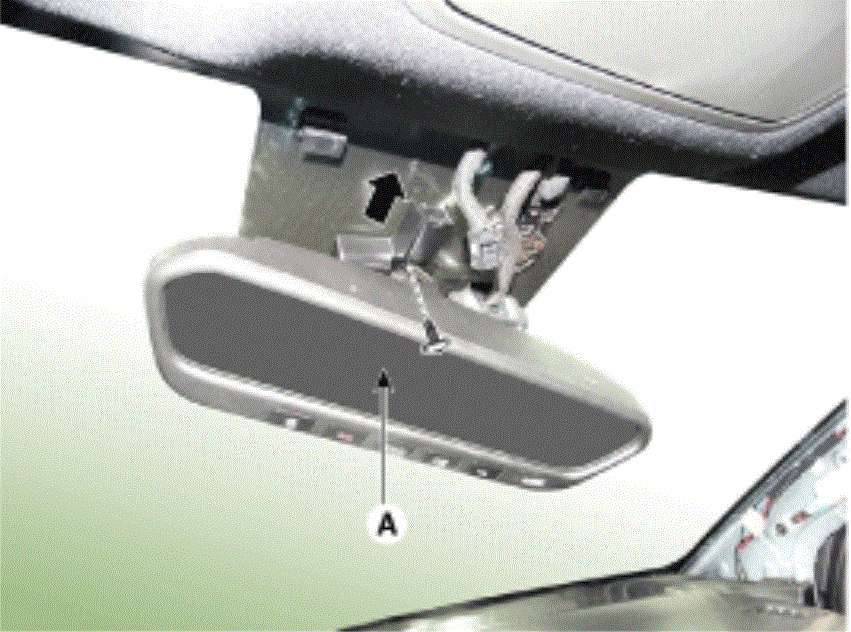

  3. Remove the mirror (A) by pulling up the mirror in the arrow direction below.
    NOTE:
    • Make sure not to damage the mounting bracket when removing the mirror.
    G15496791Courtesy of HYUNDAI MOTOR AMERICA
