Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the floor console assembly. (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the rear console cover. (Refer to Floor Console - "REAR CONSOLE COVER ")

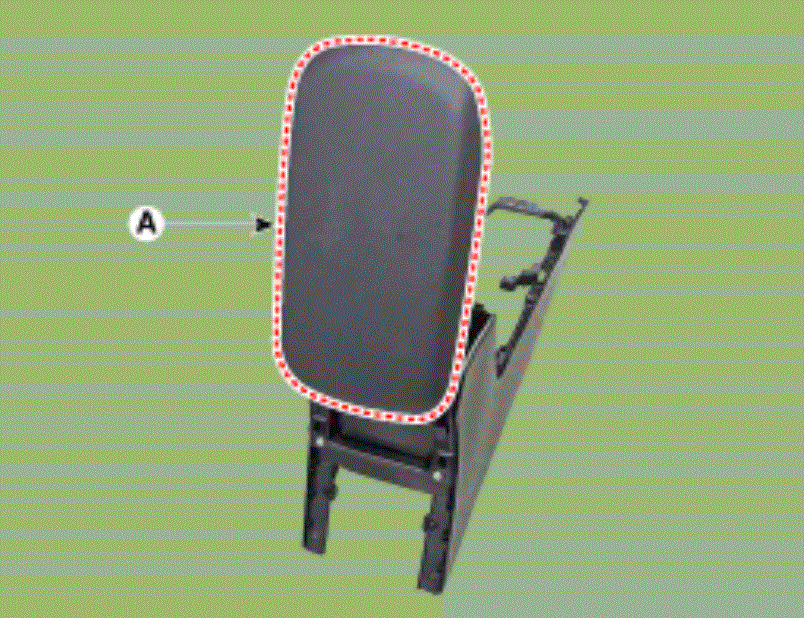

- Loosen the mounting screws and remove the console armrest (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
