Home >> Hyundai >> 2021 >> Veloster N Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Auto Lighting Control System >> Auto Light Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

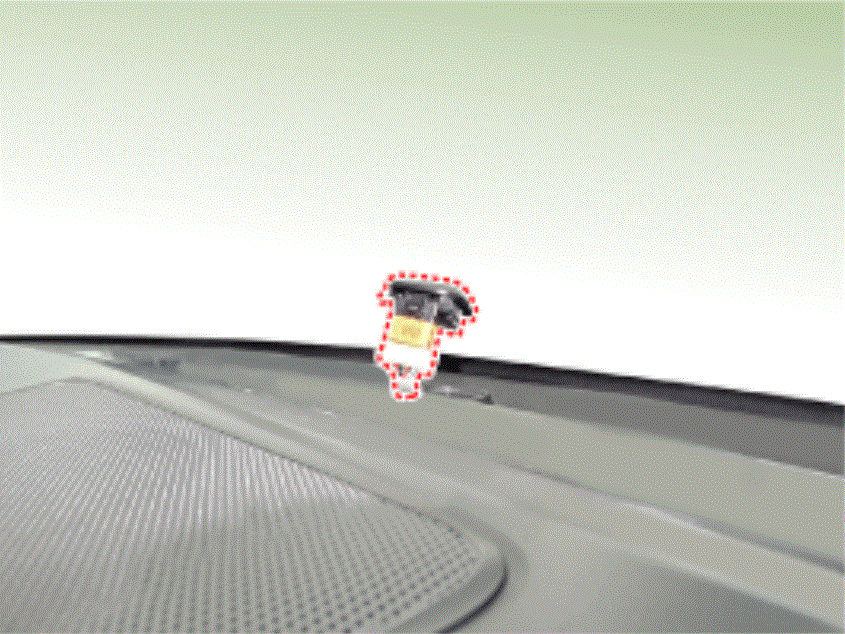

  2. Remove the auto light sensor (A) from crash pad upper side.
    G15496861Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the auto light sensor connector.
