Home >> Hyundai >> 2021 >> Veloster N Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Audio Remote Control >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly. (Refer to Steering System - "STEERING WHEEL ")

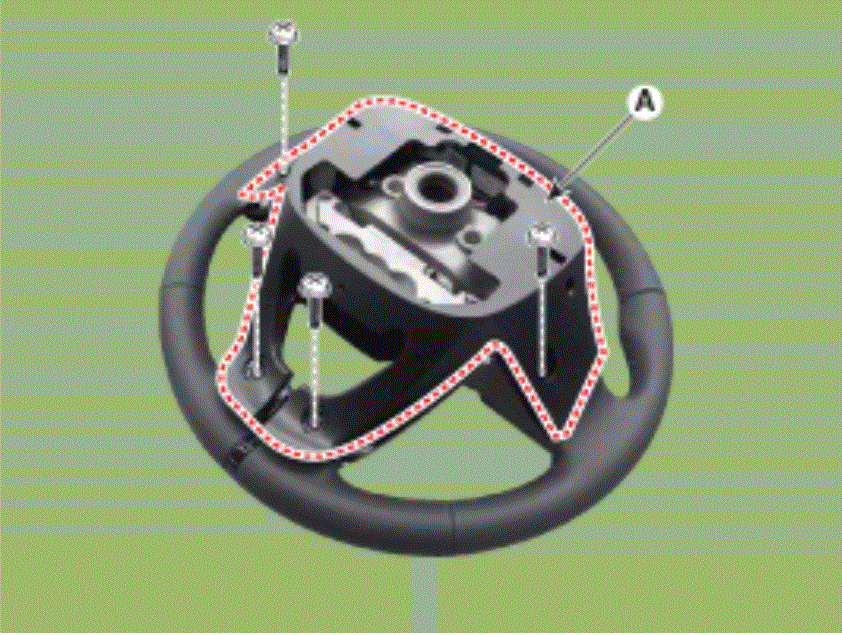

  3. Remove the screws from the steering back cover (A).
    G15494866Courtesy of HYUNDAI MOTOR AMERICA

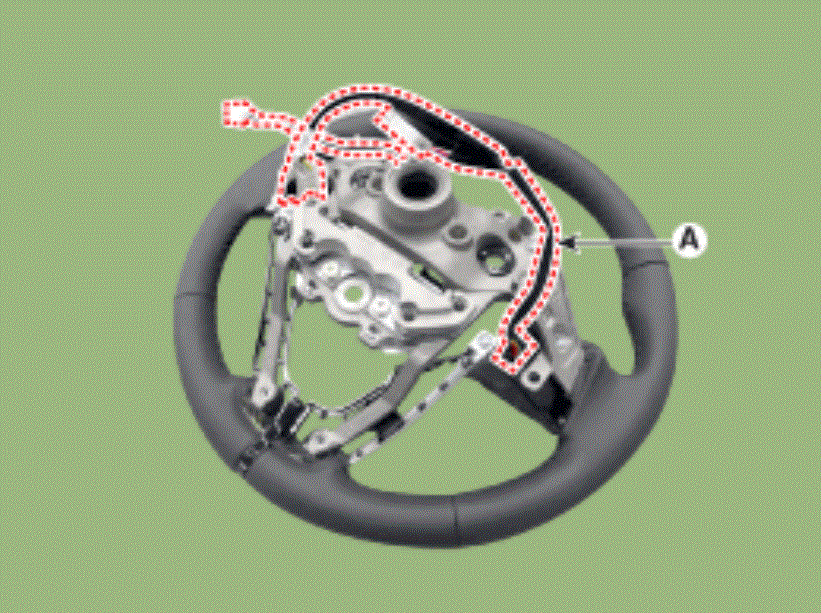

  4. Remove the steering remote control connector (A).
    G15494867Courtesy of HYUNDAI MOTOR AMERICA

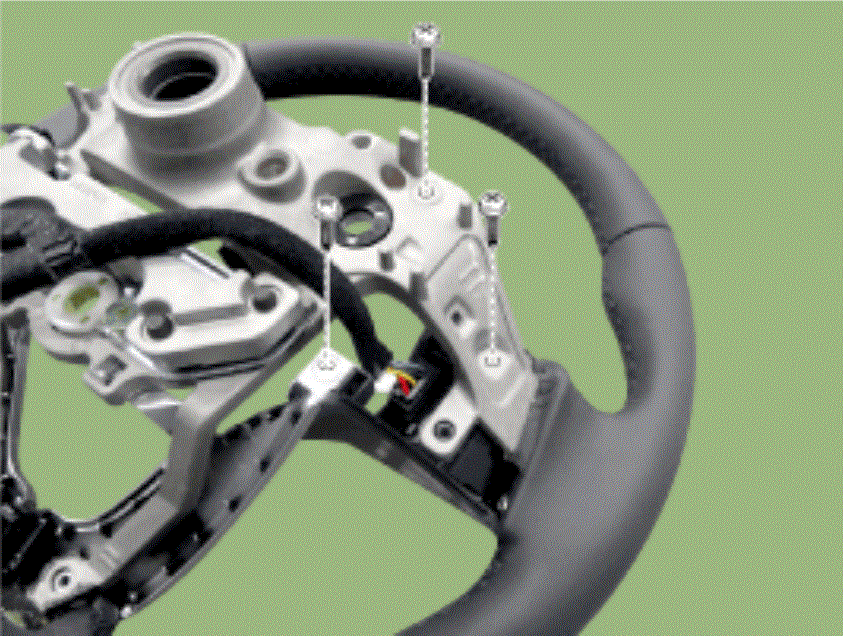

  5. Remove the steering remote control (A) after loosening the screws.
    G15494868Courtesy of HYUNDAI MOTOR AMERICA

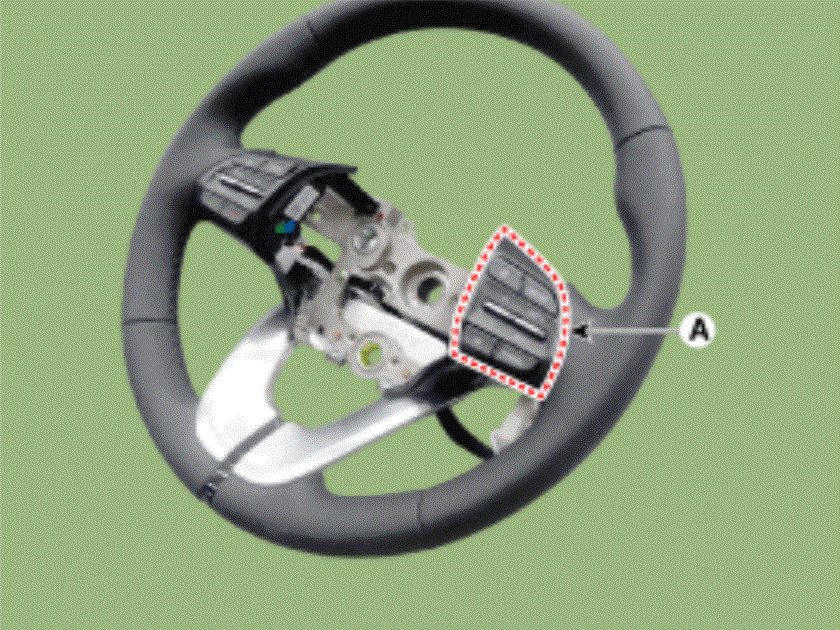

    G15494869Courtesy of HYUNDAI MOTOR AMERICA
