Repair Procedures: Inspection

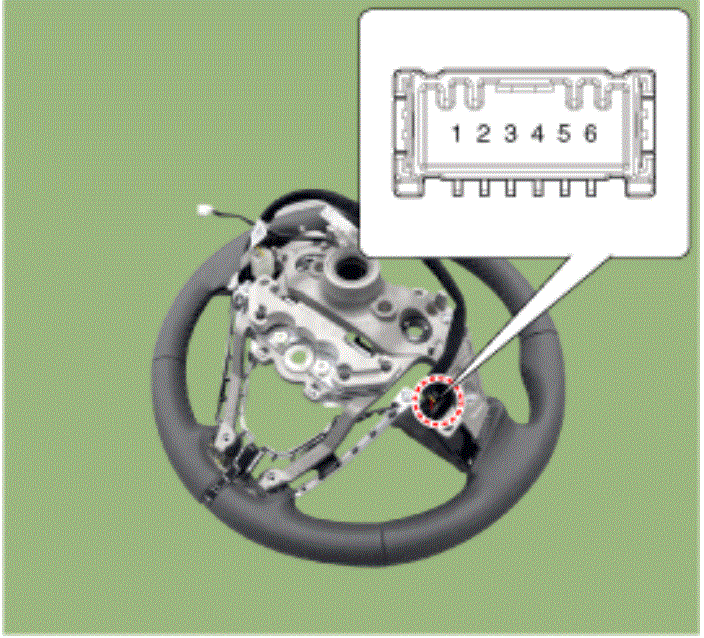

- Check for resistance between terminals in each switch position (LH).
[LH: Audio + Hands free]
RESISTANCE REFERENCESwitch Connector terminal Resistance (±5%) SEEK Up 1 - 6 430Ω SEEK Down 1.11 kΩ MODE 2.11 kΩ MUTE 3.11 kΩ Volume (+) 4.61 kΩ Volume (-) 6.81 kΩ Voice 10.71 kΩ END 18.91 kΩ SEND 40.91 kΩ - Check for resistance between terminals in each switch position (RH).
[RH: Trip + Cruise]
RESISTANCE REFERENCESwitch Connector terminal Resistance (±5%) Cancel 2 - 6 390Ω SET (-) 2 - 6 610Ω RES (+) 2 - 6 910Ω Cruise ON/OFF 2 - 6 2.13 kΩ REV Matching 2 - 6 3.63Ω Group 1 - 6 390Ω Trip up 1 - 6 610Ω Trip down 1 - 6 910Ω ENTER 1 - 6 1.38Ω N 1 - 6 2.13 kΩ Drive mode 2 - 6 3.63Ω
