Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

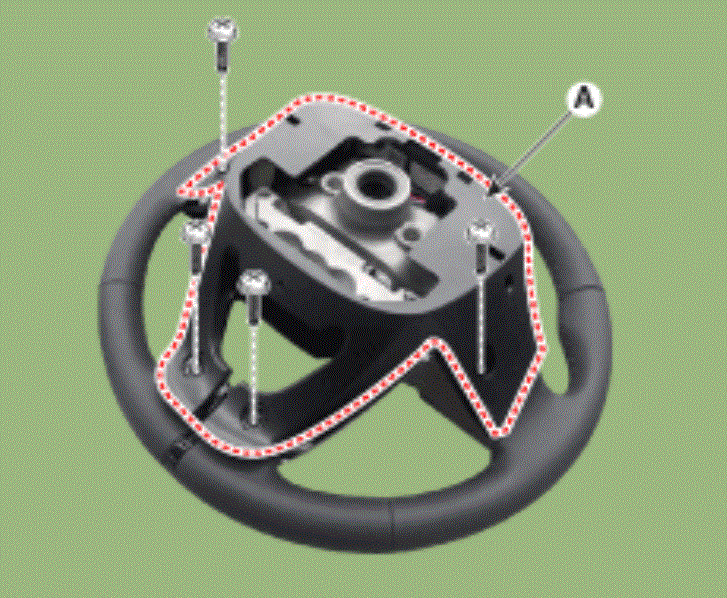

  3. Remove the screws from the steering back cover (A).
    G15471948Courtesy of HYUNDAI MOTOR AMERICA

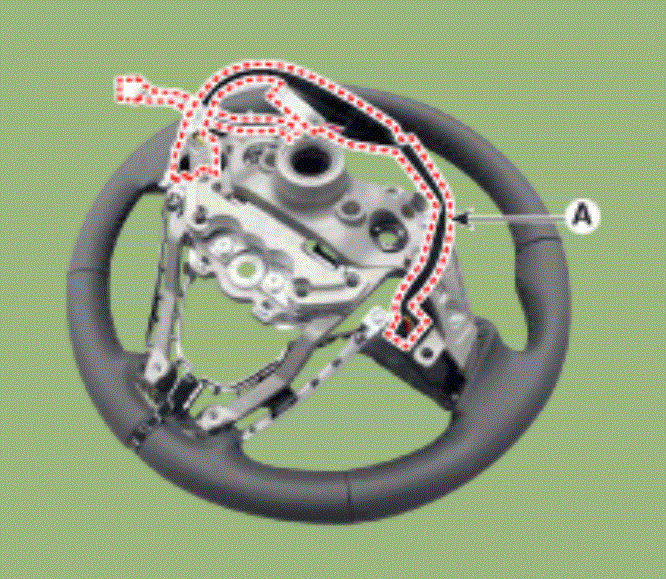

  4. Remove the steering remote control connector (A).
    G15471949Courtesy of HYUNDAI MOTOR AMERICA

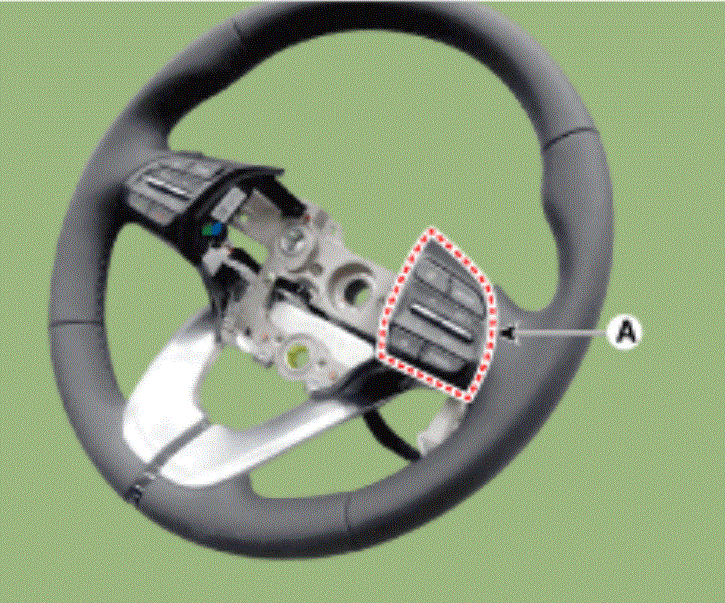

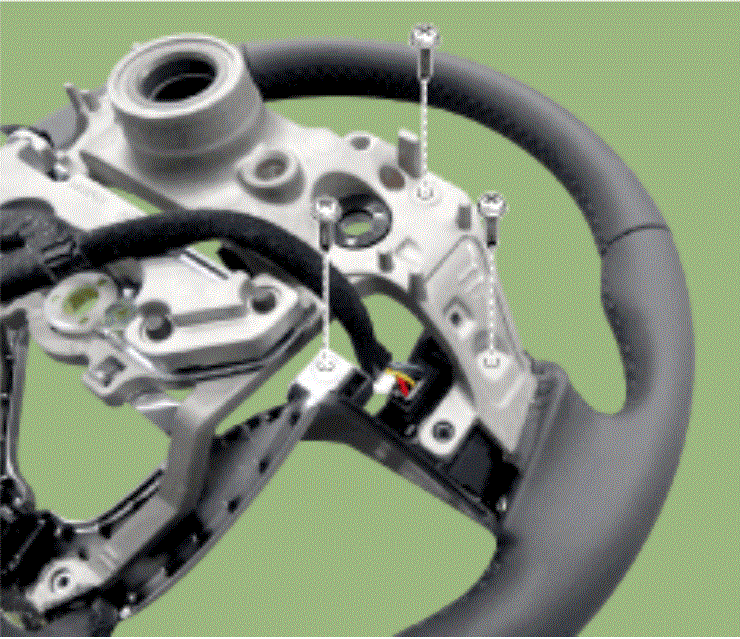

  5. Remove the steering remote control (A) after loosening the screws.
    G15471950Courtesy of HYUNDAI MOTOR AMERICA
    G15471951Courtesy of HYUNDAI MOTOR AMERICA
